Name: BSL305SPEH6327XTSA1
Brand: Infineon Technologies
SKU: BSL305SPEH6327XTSA1
Availability: InStock

new-10%

BSL305SPEH6327XTSA1

Manufacturer part number:BSL305SPEH6327XTSA1

Manufacturer:Infineon Technologies

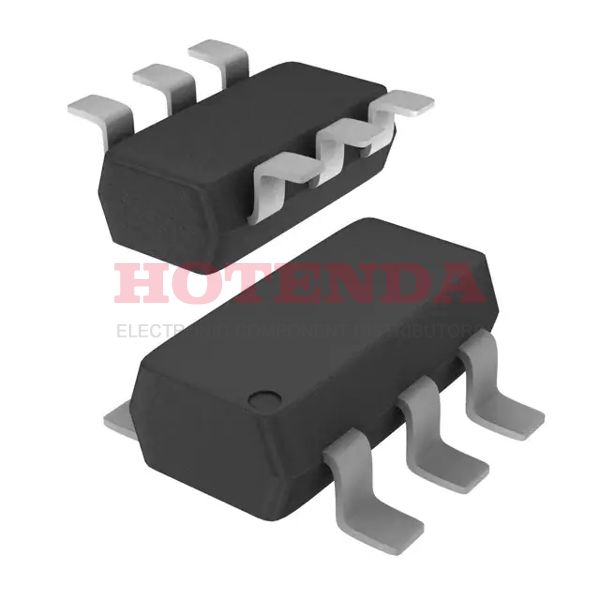

Description:Transistor: P-MOSFET; unipolar; -30V; -5.3A; 2W; PG-TSOP-6

Case Package:SOT-23

Datasheet:BSL305SPEH6327XTSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2013
Series	OptiMOS™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Terminal Finish	Tin (Sn)
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Reference Standard	AEC-Q101
JESD-30 Code	R-PDSO-G6
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	45m Ω @ 5.3A, 10V
Vgs(th) (Max) @ Id	2V @ 20μA
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	939pF @ 15V
Current - Continuous Drain (Id) @ 25°C	5.3A Ta
Gate Charge (Qg) (Max) @ Vgs	14nC @ 10V
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Continuous Drain Current (ID)	5.3A
Max Dual Supply Voltage	-30V
Drain-source On Resistance-Max	0.045Ohm
Pulsed Drain Current-Max (IDM)	21.2A
Avalanche Energy Rating (Eas)	20 mJ
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About BSL305SPEH6327XTSA1

The BSL305SPEH6327XTSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Transistor: P-MOSFET; unipolar; -30V; -5.3A; 2W; PG-TSOP-6.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the BSL305SPEH6327XTSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
