Name: BSD816SNL6327HTSA1
Brand: Infineon Technologies
SKU: BSD816SNL6327HTSA1
Availability: InStock

new-10%

BSD816SNL6327HTSA1

Manufacturer part number:BSD816SNL6327HTSA1

Manufacturer:Infineon Technologies

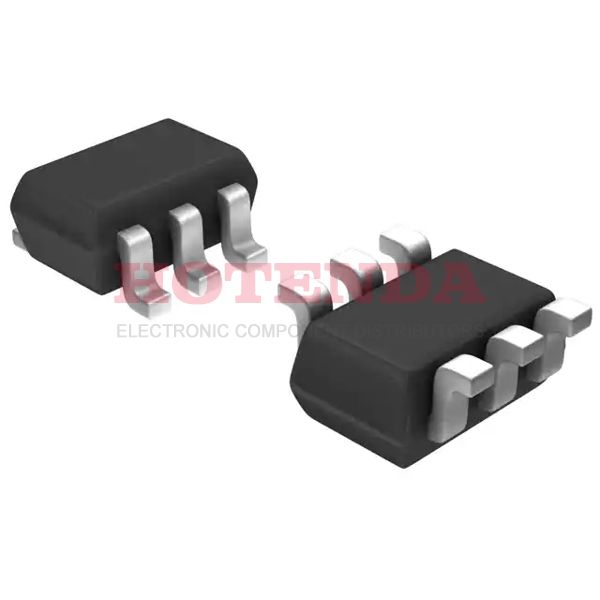

Description:Trans MOSFET N-CH 20V 1.4A 6-Pin SOT-363 T/R

Case Package:SOT-23

Datasheet:BSD816SNL6327HTSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-VSSOP, SC-88, SOT-363
Number of Pins	6
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2013
Series	OptiMOS™
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	500mW Ta
Operating Mode	ENHANCEMENT MODE
Turn On Delay Time	5.3 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	160m Ω @ 1.4A, 2.5V
Vgs(th) (Max) @ Id	950mV @ 3.7μA
Input Capacitance (Ciss) (Max) @ Vds	180pF @ 10V
Current - Continuous Drain (Id) @ 25°C	1.4A Ta
Gate Charge (Qg) (Max) @ Vgs	0.6nC @ 2.5V
Rise Time	9ns
Drive Voltage (Max Rds On,Min Rds On)	1.8V 2.5V
Vgs (Max)	±8V
Fall Time (Typ)	2.2 ns
Turn-Off Delay Time	11 ns
Continuous Drain Current (ID)	1.4A
Gate to Source Voltage (Vgs)	8V
Max Dual Supply Voltage	20V
Feedback Cap-Max (Crss)	10 pF
RoHS Status	RoHS Compliant

About BSD816SNL6327HTSA1

The BSD816SNL6327HTSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 20V 1.4A 6-Pin SOT-363 T/R.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the BSD816SNL6327HTSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
