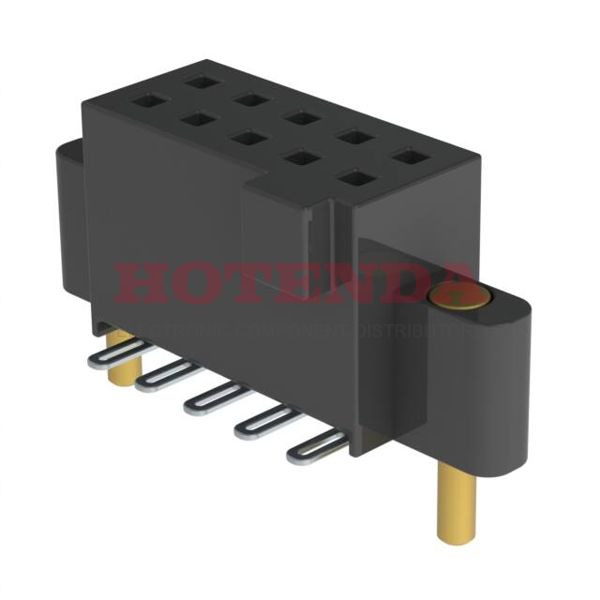

Name: SFM-105-L2-L-D-SN-P
Brand: Samtec Inc.
SKU: SFM-105-L2-L-D-SN-P
Availability: InStock

new-10%

SFM-105-L2-L-D-SN-P

Manufacturer part number:SFM-105-L2-L-D-SN-P

Manufacturer:Samtec Inc.

Description:SFM-105-L2-L-D-SN-P datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:SFM-105-L2-L-D-SN-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Tiger Eye™ SFM
JESD-609 Code	e3
Feature	Pick and Place, Solder Retention
Part Status	Active
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Voltage - Rated	250VAC
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.2A per Contact
Total Number of Contacts	10
Insulation Height	0.185 4.70mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.435 inch
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.145 inch
UL Flammability Code	94V-0
Body Depth	0.185 inch
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Contact Finish Thickness - Mating	10.0μin 0.25μm
Stack Height (Mating)	6.15mm 6.30mm 7.92mm 8.08mm 9.70mm 9.86mm 11.61mm 11.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SFM-105-L2-L-D-SN-P Product Details

SFM-105-L2-L-D-SN-P Overview

Packaging is in the form of Receptacle.This device's mounting type is Surface Mount.Bulk cases are used to package the product.This product is in the Tiger Eye? SFM Series.It is more powerful in many ways due to its Pick and Place, Solder Retention feature.Device runs in -55°C~125°C operating temperature.
