Name: M40-6202546
Brand: Harwin Inc.
SKU: M40-6202546
Price: 1.81000 USD
Availability: InStock

new-10%

M40-6202546

Manufacturer part number:M40-6202546

Manufacturer:Harwin Inc.

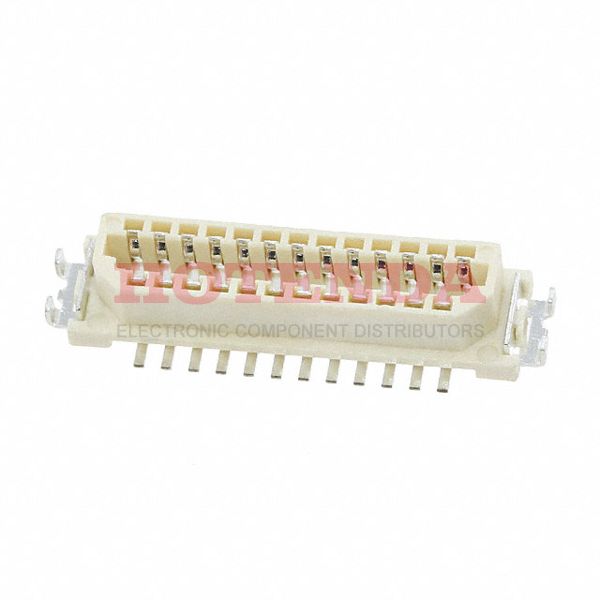

Description:Receptacle, Outer Shroud Contacts Bulk 2 Rows 0.039 1.00mm Surface Mount 25 Positions M40 Tin Solder Bronze

Case Package:SOT-23

Datasheet:M40-6202546 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Insulation Material	Nylon
Housing Material	Thermoplastic
Weight	258.00901mg
Packaging	Bulk
Published	2007
Series	M40
JESD-609 Code	e3
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	25
Max Operating Temperature	125°C
Min Operating Temperature	-20°C
Number of Rows	2
Gender	Receptacle
Voltage - Rated	100V
Additional Feature	POLARIZED, STAGGERED CONFIGURATION
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	25
Orientation	Straight
Depth	4.2mm
Current Rating	500mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Tin
Voltage - Rated AC	100V
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Body Breadth	0.165 inch
UL Flammability Code	94V-0
Housing Color	Natural
Rated Current (Signal)	0.5A
Contact Resistance	50mOhm
Insulation Resistance	500MOhm
Body/Shell Style	SOCKET
Max Voltage Rating (AC)	150V
Durability	30 Cycles
Contact Pattern	STAGGERED
Length	18.1mm
Width	15.1mm
Contact Finish Thickness	80.0μin 2.03μm
Plating Thickness	80μin
Height Above Board	0.130 3.30mm
Stack Height (Mating)	4.3mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

M40-6202546 Product Details

M40-6202546 Overview

The product comes in a package of Receptacle, Outer Shroud Contacts.To package the product, a Bulk case is used.Surface Mount is the type of mounting for the device.The product is a member of the M40 Series.It is possible to maintain Board Guide, Solder Retention while the system is operating.For mounting this part, a Surface Mount socket is required.Use it when the temperature is below 125°C.Temperatures below -20°C are required for this device to operate.Among other features are POLARIZED, STAGGERED CONFIGURATION, to name only a few.
