Name: IRLR3714TRPBF
Brand: Infineon Technologies
SKU: IRLR3714TRPBF
Availability: InStock

new-10%

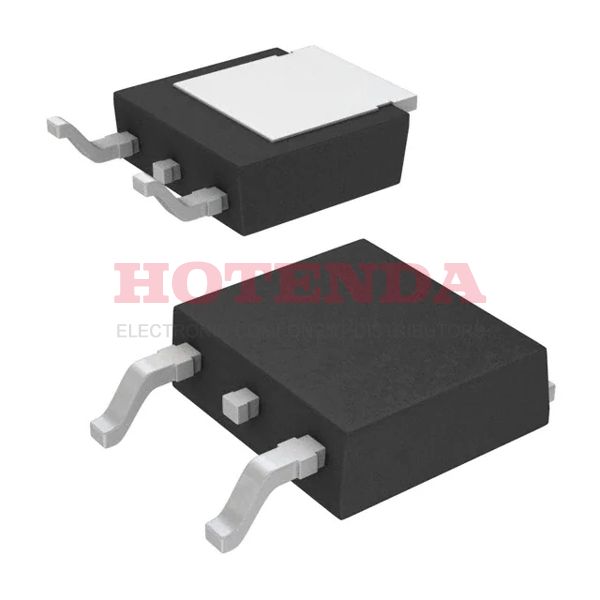

IRLR3714TRPBF

Manufacturer part number:IRLR3714TRPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 20V 36A DPAK

Case Package:SOT-23

Datasheet:IRLR3714TRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Supplier Device Package	D-Pak
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Voltage - Rated DC	20V
Technology	MOSFET (Metal Oxide)
Current Rating	36A
Number of Elements	1
Power Dissipation-Max	47W Tc
Element Configuration	Single
Power Dissipation	47W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	20mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	670pF @ 10V
Current - Continuous Drain (Id) @ 25°C	36A Tc
Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 4.5V
Rise Time	78ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	4.5 ns
Turn-Off Delay Time	10 ns
Continuous Drain Current (ID)	36A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	20V
Input Capacitance	670pF
Drain to Source Resistance	28mOhm
Rds On Max	20 mΩ
RoHS Status	RoHS Compliant
Lead Free	Lead Free
