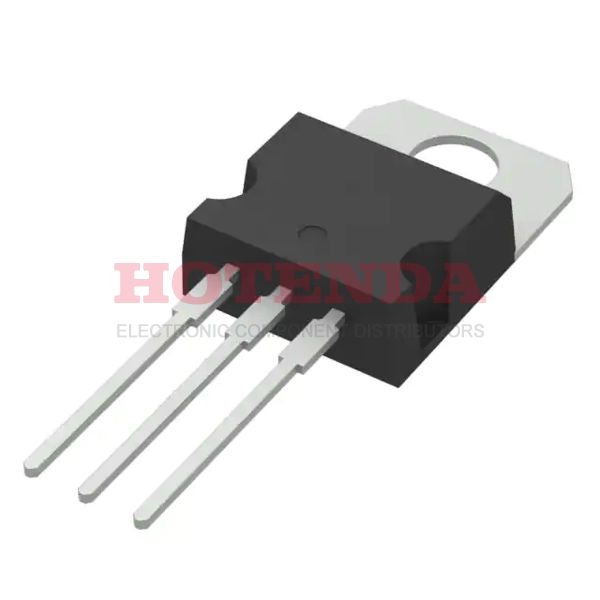

STP40NS15 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available on our website
SOT-23
STP40NS15 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
TO-220-3
Transistor Element Material
SILICON
Operating Temperature
175°C TJ
Packaging
Tube
Series
MESH OVERLAY™
JESD-609 Code
e3
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
3
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn)
Subcategory
FET General Purpose Power
Technology
MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Reach Compliance Code
not_compliant
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
Base Part Number
STP40N
Pin Count
3
JESD-30 Code
R-PSFM-T3
Qualification Status
Not Qualified
Number of Elements
1
Power Dissipation-Max
140W Tc
Element Configuration
Single
Operating Mode
ENHANCEMENT MODE
Power Dissipation
140W
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
52m Ω @ 40A, 10V
Vgs(th) (Max) @ Id
4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
2400pF @ 25V
Current - Continuous Drain (Id) @ 25°C
40A Tc
Gate Charge (Qg) (Max) @ Vgs
110nC @ 10V
Rise Time
45ns
Drive Voltage (Max Rds On,Min Rds On)
10V
Vgs (Max)
±20V
Fall Time (Typ)
35 ns
Turn-Off Delay Time
85 ns
Continuous Drain Current (ID)
40A
JEDEC-95 Code
TO-220AB
Gate to Source Voltage (Vgs)
20V
Drain-source On Resistance-Max
0.052Ohm
Drain to Source Breakdown Voltage
150V
Pulsed Drain Current-Max (IDM)
160A
Avalanche Energy Rating (Eas)
500 mJ
RoHS Status
ROHS3 Compliant
In-Stock:1399 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
STP40NS15 Product Details
STP40NS15 Description
The STP40NS15 is a 150V Mesh overlay? N-channel Power MOSFET, which is ideal for high-frequency switching and synchronous rectification. The STP40NS15 is designed using the company’s consolidated strip layout-based MESH OVERLAY? process. This technology matches and improves the performances compared with standard parts from various sources. The operating junction and storage temperature are between -65 and 175℃. The MOSFET STP40NS15 is in the TO-220-3 package with 140W power dissipation.
STP40NS15 Features
World's lowest RDS (ON)
Very low Qg and Qgd
Excellent gate charge x RDS (ON) product (FOM)
MSL1 rated 2
Environmentally friendly
Increased efficiency
Highest power density
Less paralleling required
STP40NS15 Applications
High current switching
Uninterruptible power supply
Primaryswitching in isolated DC-DC Converters
Power Management
Motor Drive & Control
Automotive
Communications & Networking
Audio
