PHD66NQ03LT,118

PHD66NQ03LT,118

PHD66NQ03LT,118

NXP USA Inc.

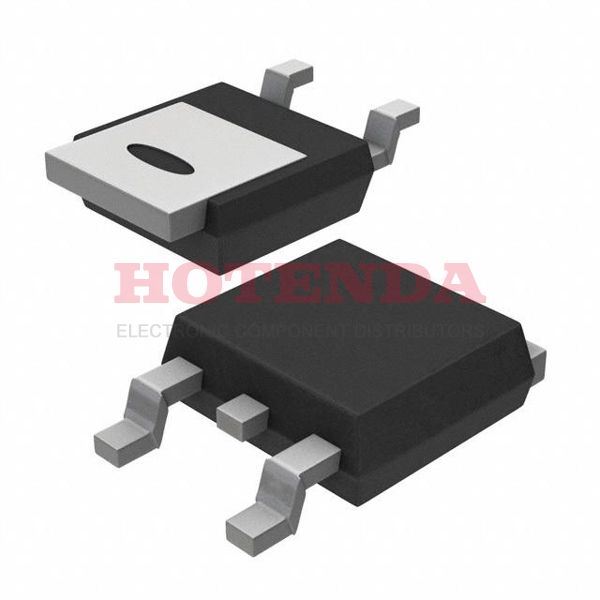

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 10.5m Ω @ 25A, 10V ±20V 860pF @ 25V 12nC @ 5V 25V TO-252-3, DPak (2 Leads + Tab), SC-63

SOT-23

PHD66NQ03LT,118 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Surface MountYES
Transistor Element Material SILICON
Operating Temperature-55°C~175°C TJ
PackagingTape & Reel (TR)
Series TrenchMOS™
Published 2004
JESD-609 Code e3
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN
Subcategory FET General Purpose Power
Technology MOSFET (Metal Oxide)
Terminal Position SINGLE
Terminal FormGULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count3
JESD-30 Code R-PSSO-G2
Qualification StatusNot Qualified
Number of Elements 1
Configuration SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max 93W Tc
Operating ModeENHANCEMENT MODE
Case Connection DRAIN
FET Type N-Channel
Transistor Application SWITCHING
Rds On (Max) @ Id, Vgs 10.5m Ω @ 25A, 10V
Vgs(th) (Max) @ Id 2V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds 860pF @ 25V
Current - Continuous Drain (Id) @ 25°C 66A Tc
Gate Charge (Qg) (Max) @ Vgs 12nC @ 5V
Drain to Source Voltage (Vdss) 25V
Drive Voltage (Max Rds On,Min Rds On) 5V 10V
Vgs (Max) ±20V
JEDEC-95 Code TO-252AA
Drain Current-Max (Abs) (ID) 66A
Drain-source On Resistance-Max 0.0136Ohm
Pulsed Drain Current-Max (IDM) 228A
DS Breakdown Voltage-Min 25V
Avalanche Energy Rating (Eas) 90 mJ
RoHS StatusROHS3 Compliant
In-Stock:3250 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.071188$0.071188
500$0.052344$26.172
1000$0.043620$43.62
2000$0.040018$80.036
5000$0.037400$187
10000$0.034791$347.91
15000$0.033647$504.705
50000$0.033085$1654.25

PHD66NQ03LT,118 Product Details

PHD66NQ03LT,118 Overview


As a result of avalanche breakdown, energy applied to the MOSFET is called avalanche energy, and the avalanche energy rating is 90 mJ.CI refers to the capacitance between two input terminals on an op amp with either input grounded, and this device's maximum input capacitance is 860pF @ 25V.There is no drain current on this device since the maximum continuous current it can conduct is 66A.There is a peak drain current of 228A, its maximum pulsed drain current.In order for DS breakdown voltage to remain above 25V, it should remain above the 25V level.The transistor must receive a 25V drain to source voltage (Vdss) in order to function.In addition to reducing power consumption, this device uses drive voltage (5V 10V).

PHD66NQ03LT,118 Features


the avalanche energy rating (Eas) is 90 mJ
based on its rated peak drain current 228A.
a 25V drain to source voltage (Vdss)


PHD66NQ03LT,118 Applications


There are a lot of NXP USA Inc.
PHD66NQ03LT,118 applications of single MOSFETs transistors.


  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
  • Battery Protection Circuit
  • Telecom 1 Sever Power Supplies
  • Industrial Power Supplies
  • PFC stages, hard switching PWM stages and resonant switching
  • PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
  • Lighting, Server, Telecom and UPS.
