Name: S6E2D55J0AGV2000A
Brand: Cypress Semiconductor Corp
SKU: S6E2D55J0AGV2000A
Price: 19.51000 USD
Availability: InStock

new

S6E2D55J0AGV2000A

Manufacturer part number:S6E2D55J0AGV2000A

Manufacturer:Cypress Semiconductor Corp

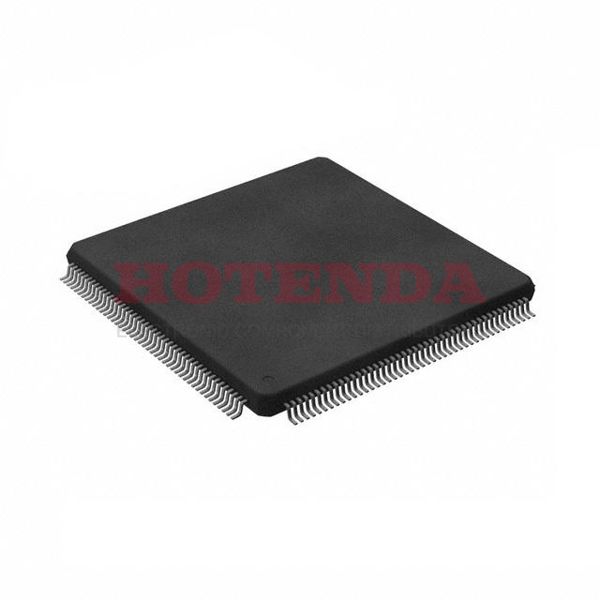

Description:384KB 384K x 8 FLASH ARM® Cortex®-M4F 32-Bit Microcontroller FM4 S6E2D5 Series 3.3V 176-LQFP

Case Package:SOT-23

Datasheet:S6E2D55J0AGV2000A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mounting Type	Surface Mount
Package / Case	176-LQFP
Surface Mount	YES
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	FM4 S6E2D5
Published	2016
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	176
Additional Feature	ALSO OPERATES AT 3-3.6 V SUPPLY WHEN PINS ARE USED AS USB
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.5mm
JESD-30 Code	S-PQFP-G176
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	154
Speed	160MHz
RAM Size	36K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4F
Peripherals	DMA, I2S, LVD, POR, PWM, WDT
Clock Frequency	20MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	384KB 384K x 8
Connectivity	CANbus, CSIO, EBI/EMI, I2C, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 24x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Address Bus Width	25
ROM (words)	393216
On Chip Program ROM Width	8
External Data Bus Width	16
RAM (bytes)	36864
Length	24mm
Height Seated (Max)	1.7mm
Width	24mm
RoHS Status	ROHS3 Compliant

S6E2D55J0AGV2000A Product Details

S6E2D55J0AGV2000A Overview

This Microcontroller comes in a 176-LQFP package. This Microcontroller has 154 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in FM4 S6E2D5 Series. The size of the program memory of Microcontroller is 384KB 384K x 8. MCU is powered by ARM® Cortex®-M4F Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 176 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. The device works in YES PWM channels. It is at 20MHz clock frequency. To name a few, there are additional features like ALSO OPERATES AT 3-3.6 V SUPPLY WHEN PINS ARE USED AS USB.
