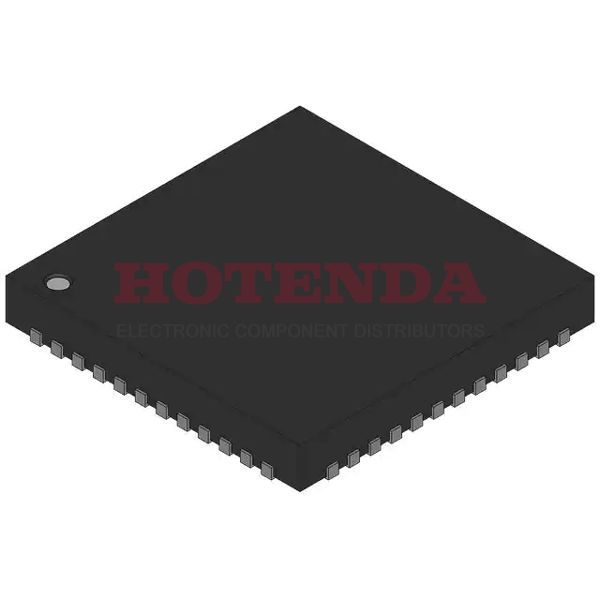

MC9S08JM8CGT Overview
The package is in 48-VFQFN Exposed Pad format. The MCU has 37 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 8-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the S08 series of components. Microcontroller has abundant program memory size of 8KB 8K x 8. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 48 of terminations. A 8-bit operation is performed by this part. There is an output of 3V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. MC9S08JM8 serves as a base part number to find alternatives. It is possible for the device to work with the motor using the PWM channel YES. In terms of frequency, it operates at a 16MHz clock rate.
MC9S08JM8CGT Features
48-VFQFN Exposed Pad package
Mounting type of Surface Mount
MC9S08JM8CGT Applications
There are a lot of NXP USA Inc.
MC9S08JM8CGT Microcontroller applications.
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
- DVDDVMP3 players
