Name: DSPIC33CK256MP502-E/SS
Brand: Microchip Technology
SKU: DSPIC33CK256MP502-E/SS
Price: 4.88000 USD
Availability: InStock

new-10%

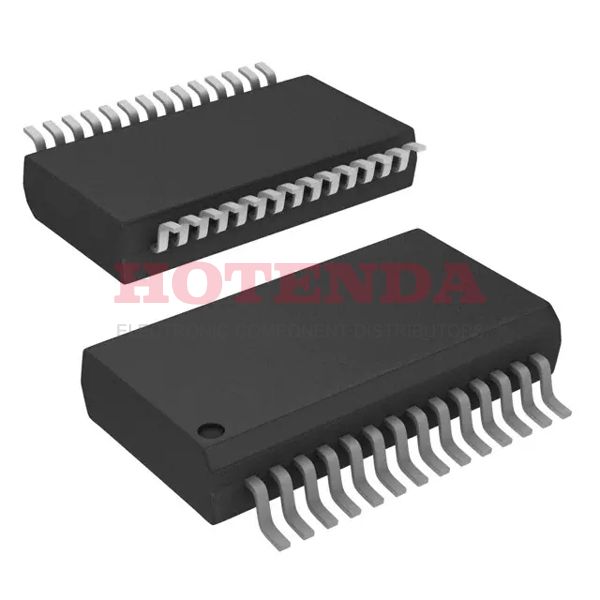

DSPIC33CK256MP502-E/SS

Manufacturer part number:DSPIC33CK256MP502-E/SS

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33CK Series DSPIC33CK256MP502 3.3V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:DSPIC33CK256MP502-E/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Supplier Device Package	28-SSOP
Number of Terminals	28
Mounting Style	SMD/SMT
Qualification	AEC-Q100
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	CAN, I2C, I2S, SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	dsPIC
RoHS	Details
Package	Tube
Base Product Number	DSPIC33CK256MP502
Mfr	Microchip Technology
Data Converters	A/D 12x12b; D/A 3x12b
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33CK
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	28
Subcategory	Embedded Processors & Controllers
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
Base Part Number	DSPIC33CK256MP502
JESD-30 Code	R-PDSO-G28
Operating Supply Voltage	3 V to 3.6 V
Supply Voltage-Max (Vsup)	3.6V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	21
Speed	100MHz
RAM Size	24K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Clock Frequency	64MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 12x12b; D/A 3x12b
Data Bus Width	16 bit
Seated Height-Max	2 mm
Number of Timers/Counters	1 Timer
Product Type	DSP - Digital Signal Processors & Controllers
EEPROM Size	-
On Chip Program ROM Width	8
Boundary Scan	YES
Low Power Mode	YES
Screening Level	AEC-Q100
Format	FIXED POINT
Integrated Cache	NO
RAM (words)	24576
Number of Timers	1
ROM Programmability	FLASH
Number of Cores	1 Core
Number of External Interrupts	4
Barrel Shifter	YES
Internal Bus Architecture	SINGLE
On Chip Data RAM Width	8
Number of DMA Channels	4
Product	DSCs
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Length	10.2mm
Height Seated (Max)	2mm
Width	5.3mm

DSPIC33CK256MP502-E/SS Product Details

DSPIC33CK256MP502-E/SS Overview
