Name: DSPIC33EV32GM003T-I/M5
Brand: Microchip Technology
SKU: DSPIC33EV32GM003T-I/M5
Price: 3.74000 USD
Availability: InStock

new-10%

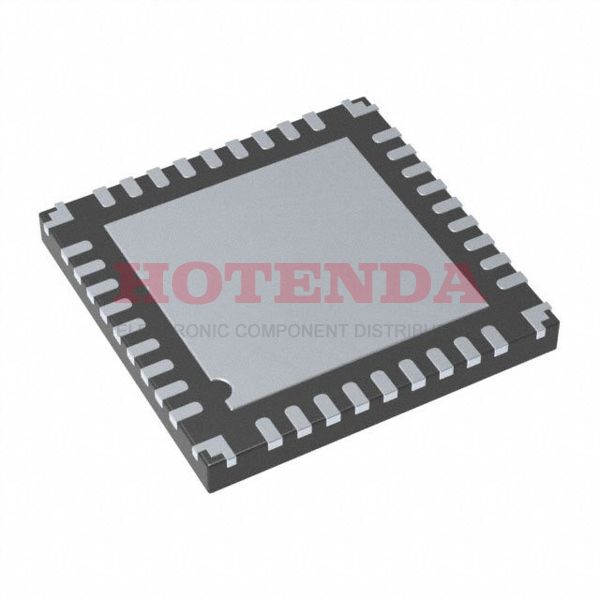

DSPIC33EV32GM003T-I/M5

Manufacturer part number:DSPIC33EV32GM003T-I/M5

Manufacturer:Microchip Technology

Description:32KB 11K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EV Series DSPIC33EV32GM0 70(MHz) 5V 36-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EV32GM003T-I/M5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	36-UFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	36-UQFN (5x5)
Number of Terminals	36
Mounting Style	SMD/SMT
Clock Freq	70(MHz)
Operating Temperature Classification	Industrial
Package Type	UQFP EP
Number of Timers - General Purpose	9
Operating Temp Range	-40C to 85C
# I/Os (Max)	25
Interface Type	I2C/SPI/UART
Total Internal Ram Size	4KB(kB)
Device Core Size	16(b)
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Typ)	1.8/2.5/3.3/5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	4.5(V)
Programmable	Yes
Mounting	Surface Mount
Data Converters	A/D 13x10b/12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	DSPIC33EV32GM003
Mfr	Microchip Technology
Product Status	Active
Qualification	AEC-Q100
Number of I/Os	25 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	dsPIC
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	25
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	dsPIC™ 33EV
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	36
Subcategory	Embedded Processors & Controllers
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Frequency	70(MHz)
Base Part Number	DSPIC33EV32GM0
Pin Count	36
JESD-30 Code	S-PQCC-N36
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Operating Supply Voltage	4.5 V to 5.5 V
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Oscillator Type	Internal
Number of I/O	25
Speed	70 MIPs
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 11K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 13x10b/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16 bit
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.6 mm
Number of Timers/Counters	7 Timer
Product Type	DSP - Digital Signal Processors & Controllers
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
ROM Programmability	FLASH
Number of Cores	1 Core
Product	DSCs
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Device Core	dsPIC
Length	5mm
Height Seated (Max)	0.6mm
Width	5mm
RoHS Status	ROHS3 Compliant

DSPIC33EV32GM003T-I/M5 Product Details

DSPIC33EV32GM003T-I/M5 Overview

Packaged in a 36-UFQFN Exposed Pad format. A total of 25 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 16-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~85°C TA. A dsPIC™ 33EV series electrical component is used in this application. This program has a program memory of 32KB 11K x 24 bytes, which is the size of the program. With a dsPIC Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER uPs/uCs/peripheral parts. There are 36 terminations on the IC chip, which means there are 36 terminations on the integrated circuit chip. In addition, MCU chip comes with a 16-bit size. Microcontroller chip has outputs of 5V volts. The system has YES channels for DMA communication. Alternatives can be found by searching through the base part number DSPIC33EV32GM0 to find them. At a frequency of 70(MHz), Microcontroller can operate efficiently. This MCU Chip uses YES PWM channels to operate. There are 7 Timer timers/counters in this device. In total, it has 36 pins. It runs on a 40MHz clock.
