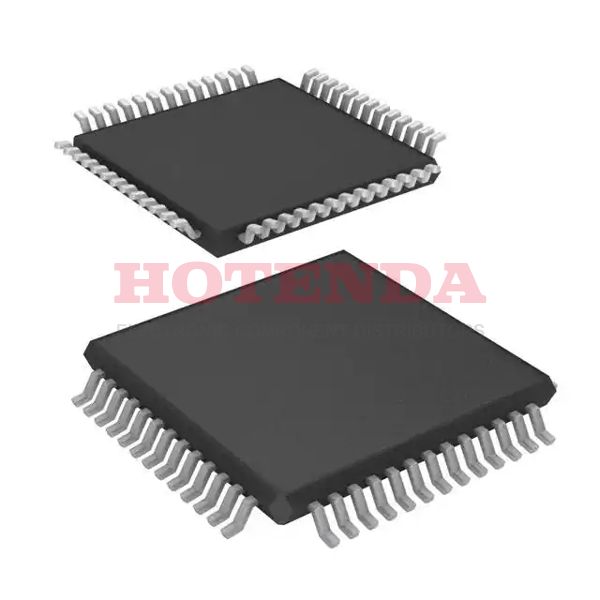

CY29972AI Overview
As a clock IC, it uses the Tray package. 52-TQFP contains this Clock PLL. When reflowed, this frequency generator can withstand a maximum temperature of 235. As a result, frequency synthesizers can be found to contain 52 terminations. For this clock generator ic, a voltage of 3.3V is required. This Clock PLL will be fed by Clock, Crystal as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 125MHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. There are 2.9V~3.6V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at -40°C~85°C. I would like to present to you a frequency synthesizer that is compatible with Clock logic levels. This is an electronic part that can be classified as a Fanout Distribution, Multiplexer, Spread Spectrum Clock Generator, Zero Delay Buffer in this case. In particular, this clock PLL is designed to be used with microprocessors. CY29972 is the base part number for finding related electronic parts. There is a 52 pin that is available on the digital clock generator. The maximum supply voltage that clock generator can handle is 3.3V.
CY29972AI Features
Available in the 52-TQFP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CY29972AI Applications
There are a lot of Cypress Semiconductor Corp
CY29972AI Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
