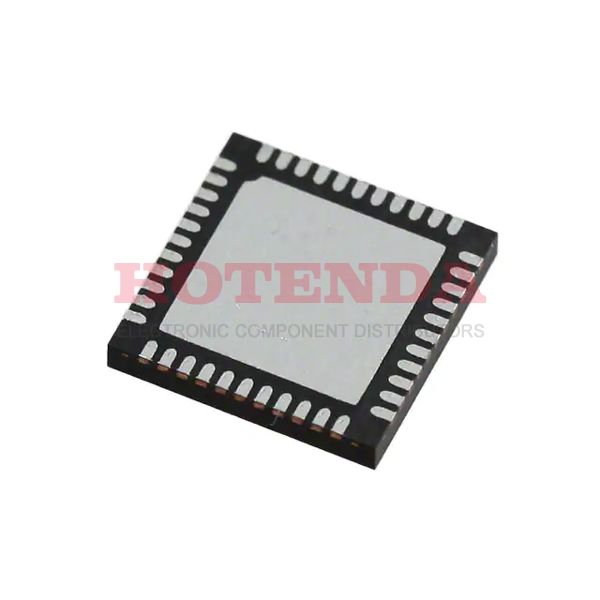

SM802140UMG Overview
As a clock IC, PLLs is packaged using the Tray method. This clock generator is embedded in the 44-VFQFN Exposed Pad package. LVCMOS, Crystal is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 644.53125MHz Max. This component can be conveniently installed on the panel thanks to the Surface Mount. Clock PLL works with 2.375V~3.465V supply voltage provided. The ambient temperature should be set at -40°C~85°C, which is estimated by the test statistics. This is a clock generator compatible with LVDS logic levels. According to the base part number SM802140, its related parts can be found. This electronic part is a member of the ClockWorks™, RotaryWave™ series.
SM802140UMG Features
Available in the 44-VFQFN Exposed Pad
SM802140UMG Applications
There are a lot of Microchip Technology
SM802140UMG Clock Generators applications.
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
