501GLF Overview

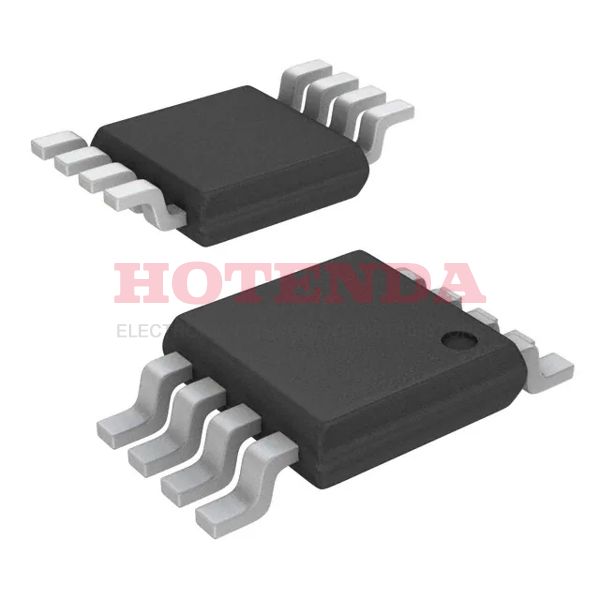

A clock integrated circuit is packaged in a Tube-shaped package because it is for use as a clock. The 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package contains this clock generator. Clock, Crystal is designed as this clock generator's input. To access the full performance of the electronic component, 1 circuits are implemented. RF synthesizers based on this clock provide frequencies up to 160MHz maximum. PLL clock is mounted in the way of Surface Mount. There should be 3V~5.25V provided with this RF synthesizer. Based on the test statistics, an ambient temperature of 0°C~70°C should be set. In this case, we are dealing with a frequency synthesizer that can be used with CMOS logic levels. This electronic component can be classified into Clock Generator. It is possible to find its related electronic parts by searching for the base part number ICS501. It is part of the LOCO? series of electronic components.
501GLF Features
Available in the 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
501GLF Applications
There are a lot of Renesas Electronics America Inc. 501GLF Clock Generators applications.
- Fiber Channel
- Clock signals to the high-speed Digital RF circuits
- Pulsed digital systems
- Microwave point-to-point systems
- Closed circuit systems
- Notebooks
- Sampling clocks for ADC and DAC
- Motor speed controls
- Medical equipment
- Radiotelephones
