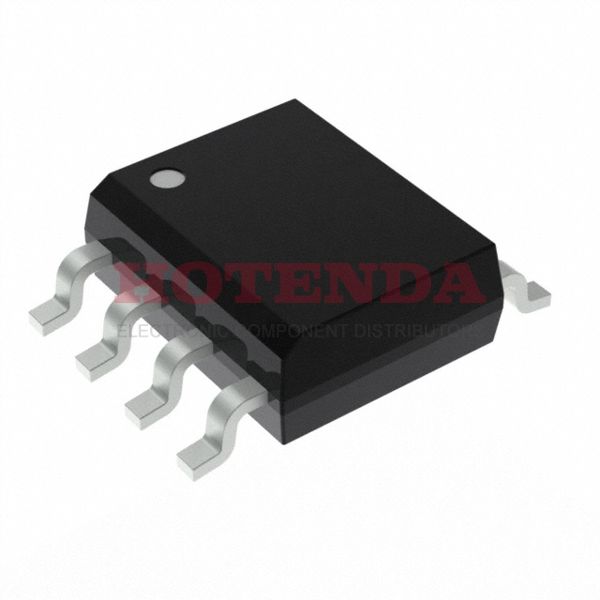

CY22800FXC-006A Overview
As a clock IC, it uses the Tube package. 8-SOIC (0.154, 3.90mm Width) contains this Clock PLL. When reflowed, this frequency generator can withstand a maximum temperature of 260. It contains 8 terminations that can be found in frequency synthesizer. The supply voltage of 3.3V allows for high efficiency. The input of this clock generator is designed to be Clock, Crystal. It is possible to access the full performance of the electrical part by implementing 1 circuits. With the Surface Mount, it is easy to install this electric component on the panel. Clock generator ic works with 3.14V~3.47V. The ambient temperature should be set at 0°C~70°C, which is estimated by the test statistics. The frequency synthesizer in this product is compatible with all levels of LVCMOS logic. This electronic component can be classified as a Clock Generator, Fanout Distribution. Clock PLL is equipped with 8 pin count. CY22800 is the base part number for finding related electronic parts. The output frequency can be amplified as high as possible with its 2 signal outputs. At a frequency of 200MHz, frequency generator is capable of achieving high efficiency.
CY22800FXC-006A Features
Available in the 8-SOIC (0.154, 3.90mm Width)
Supply voltage of 3.3V
CY22800FXC-006A Applications
There are a lot of Cypress Semiconductor Corp CY22800FXC-006A Clock Generators applications.
- Satellite receivers
- Simple clock clean-up circuits
- MRI
- Frequency Modulation (FM) stereo decoders
- Digital switching systems
- Instrument
- FSK demodulators
- Frequency synthesis
- DVD recorders
- Myriad digital applications
