ECW-FD2W474J

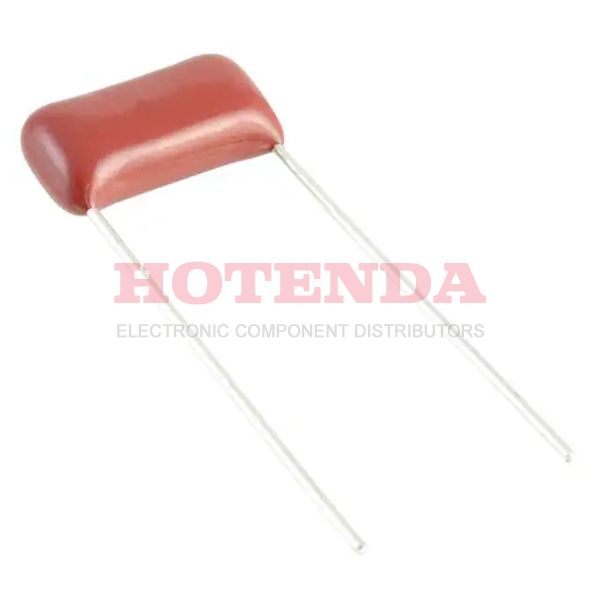

  • ECW-FD2W474J - ECW-F(D) 0.47μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-FD2W474J - ECW-F(D) 0.47μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole

ECW-FD2W474J

ECW-FD2W474J

Panasonic Electronic Components

ECW-F(D) 0.47μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-FD2W474J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2012
Series ECW-F(D)
Size / Dimension 0.689Lx0.228W 17.50mmx5.80mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 450V
HTS Code8532.25.00.80
Capacitance 0.47μF
Voltage - Rated DC 450V
Packing Method Ammo Pack
Terminal Pitch7.5mm
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.591 15.00mm
Size Code 6923
Height 9mm
Height Seated (Max) 0.354 9.00mm
Length 17.5mm
Width 5.8mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:11113 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.593232$0.593232
10$0.559653$5.59653
100$0.527974$52.7974
500$0.498089$249.0445
1000$0.469895$469.895

ECW-FD2W474J Product Details

ECW-FD2W474J Overview


Its lead spacing is 0.591 15.00mm.Temperatures of -40°C~110°C allow the device to operate.

ECW-FD2W474J Features




ECW-FD2W474J Applications


There are a lot of Panasonic Electronic Components
ECW-FD2W474J applications of film capacitors.


  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
