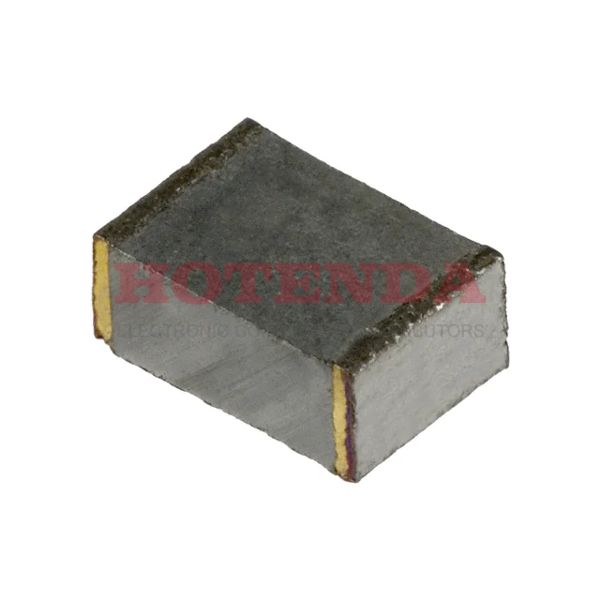

ECW-U2122V16

  • ECW-U2122V16 - ECW-U(V16) 1200pF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 250V-DC 250V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount
  • ECW-U2122V16 - ECW-U(V16) 1200pF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 250V-DC 250V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

ECW-U2122V16

ECW-U2122V16

Panasonic Electronic Components

ECW-U(V16) 1200pF Film Capacitor ±5% 1913 (4833 Metric) Solder Pads 250V-DC 250V-AC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

SOT-23

ECW-U2122V16 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1913 (4833 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature-55°C~85°C
PackagingTape & Reel (TR)
Published 2008
Series ECW-U(V16)
Size / Dimension 0.189Lx0.130W 4.80mmx3.30mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching; High Pulse, DV/DT
Capacitance 1200pF
Voltage - Rated DC 250V
Packing Method TR
Depth 3.3mm
Voltage - Rated AC 250V
Case Code (Metric) 4833
Case Code (Imperial) 1913
Capacitor Type FILM CAPACITOR
Voltage 250V
Height 1.4mm
Height Seated (Max) 0.067 1.70mm
Length 4.8mm
REACH SVHC Unknown
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:6432 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECW-U2122V16 Product Details

ECW-U2122V16 Overview


Devices with a -55°C~85°C temperature capability can be operated.

ECW-U2122V16 Features



ECW-U2122V16 Applications


There are a lot of Panasonic Electronic Components ECW-U2122V16 applications of film capacitors.

  • Battery management system
  • Industrial and automotive inverters
  • RFI for automotive
  • Coupling, decoupling
  • Lighting
  • Bypassing
  • Test and measuring equipment
  • Switch-mode power supplies
  • Blocking
  • Audio/video equipment
