ECQ-E1335KF

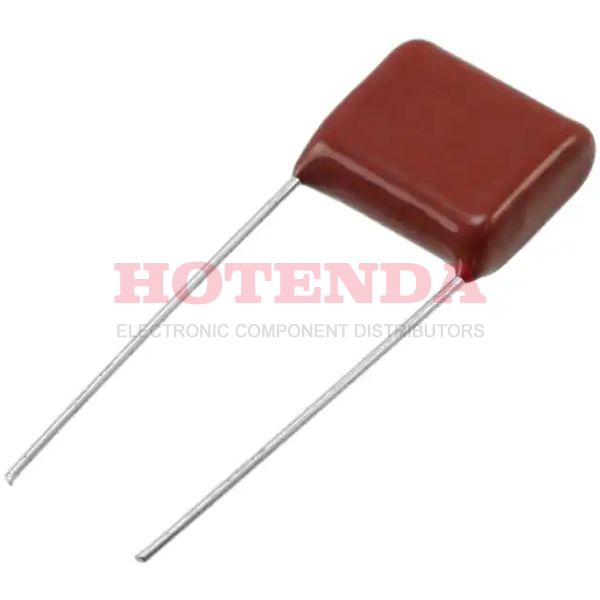

  • ECQ-E1335KF - ECQ-E(F) 3.3μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole
  • ECQ-E1335KF - ECQ-E(F) 3.3μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole

ECQ-E1335KF

ECQ-E1335KF

Panasonic Electronic Components

ECQ-E(F) 3.3μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized PCB, Through Hole

SOT-23

ECQ-E1335KF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Contact PlatingTin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECQ-E(F)
Size / Dimension 0.728Lx0.335W 18.50mmx8.50mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications General Purpose
Voltage - Rated 100V
HTS Code8532.25.00.70
Capacitance 3.3μF
Voltage - Rated DC 100V
Depth 8.5mm
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Size Code 7333
Lead/Base Style Straight
Height 16.5mm
Height Seated (Max) 0.689 17.50mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:4109 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.784005$1.784005
10$1.683024$16.83024
100$1.587759$158.7759
500$1.497886$748.943
1000$1.413100$1413.1

ECQ-E1335KF Product Details

ECQ-E1335KF Overview


There is 0.591 15.00mm lead spacing on this electrical device.It is capable of operating at -40°C~105°C degrees Celsius.

ECQ-E1335KF Features



ECQ-E1335KF Applications


There are a lot of Panasonic Electronic Components ECQ-E1335KF applications of film capacitors.

  • VCO's
  • IGBT
  • Global positioning systems
  • Coupling, decoupling
  • Test and measuring equipment
  • Switch-mode power supplies
  • Industrial and automotive inverters
  • RFI for automotive
  • Compact fluorescent lamps (CFL)
  • Satellite TV
