B32620A0332K289

  • B32620A0332K289 - B32620 3300pF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 500V-AC Polypropylene (PP), Metallized - Stacked
  • B32620A0332K289 - B32620 3300pF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 500V-AC Polypropylene (PP), Metallized - Stacked

B32620A0332K289

B32620A0332K289

TDK Electronics Inc.

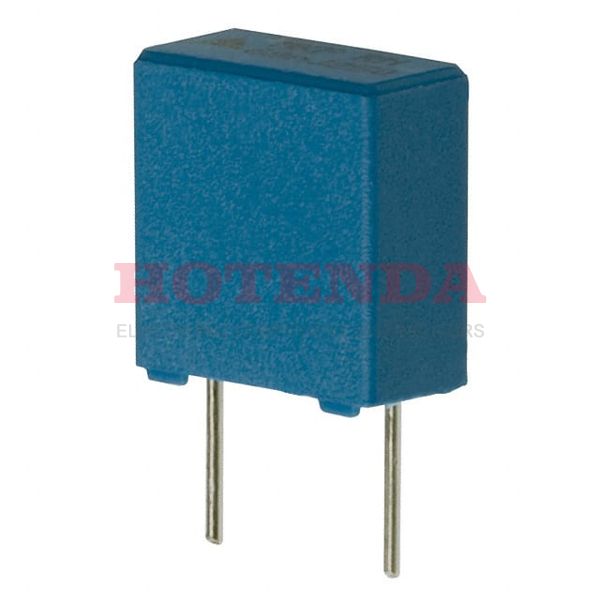

B32620 3300pF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 500V-AC Polypropylene (PP), Metallized - Stacked

SOT-23

B32620A0332K289 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingTape & Box (TB)
Published 2012
Series B32620
Size / Dimension 0.394Lx0.197W 10.00mmx5.00mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Applications High Pulse, DV/DT
Capacitance 3300pF
Voltage - Rated DC 1000V 1kV
Voltage - Rated AC 500V
Lead Spacing0.295 7.50mm
Height Seated (Max) 0.413 10.50mm
RoHS StatusROHS3 Compliant
In-Stock:32277 items

Pricing & Ordering

QuantityUnit PriceExt. Price

B32620A0332K289 Product Details

B32620A0332K289 Overview


0.295 7.50mm is the lead spacing of this electrical device.In addition to operating at -55°C~105°C degrees, the device is capable of operating at other temperatures as well.

B32620A0332K289 Features



B32620A0332K289 Applications


There are a lot of TDK Electronics Inc. B32620A0332K289 applications of film capacitors.

  • Switch-mode power supplies
  • Filters
  • Bypassing
  • Filtering
  • Electronic ballasts
  • Battery management system
  • TV and monitor sets
  • RFI for automotive
  • Industrial and automotive inverters
  • IGBT
