Name: 0452800853
Brand: Molex
SKU: 0452800853
Price: 3.48000 USD
Availability: InStock

new-10%

0452800853

Manufacturer part number:0452800853

Manufacturer:Molex

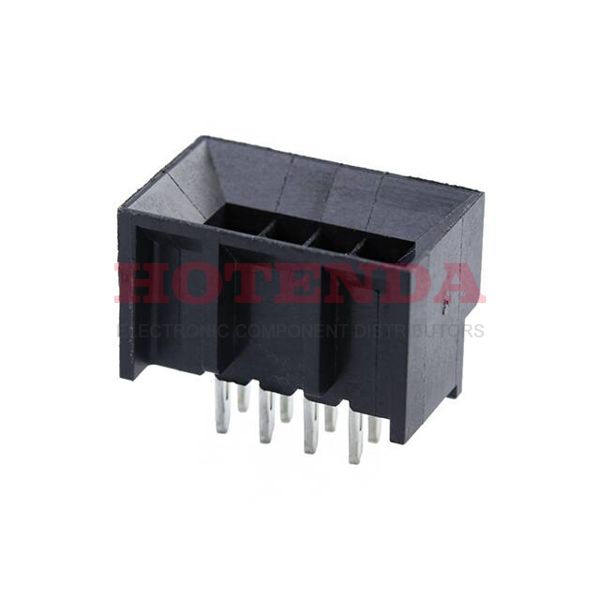

Description:Micro-Fit 3.0 BMI CPI 45280 Series 2-Row Header Press-Fit, Solder Copper Alloy Tray Through Hole Gold Polyamide (PA), Nylon, Glass Filled 8-Position Board to Board or Cable 0.457 11.60mm He

Case Package:SOT-23

Datasheet:0452800853 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Packaging	Tray
Series	Micro-Fit 3.0 BMI CPI 45280
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
Connector Type	Header
Number of Positions	8
Applications	General Purpose, Medical, Military, Telecommunications
Number of Rows	2
Additional Feature	POLARIZED, SHROUDED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Terminal Pitch	3mm
Insulation Height	0.457 11.60mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.193 4.90mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0452800853 Product Details

0452800853 Overview

You'll get Header packages.A Through Hole mounting type is specified for the device.A Tray case is used for packaging.The product belongs to the Micro-Fit 3.0 BMI CPI 45280 Series.Additionally, there are other features such as POLARIZED, SHROUDED.There's an application for it called General Purpose, Medical, Military, Telecommunications.A number of aspects of its Board Guide feature make it more powerful.
