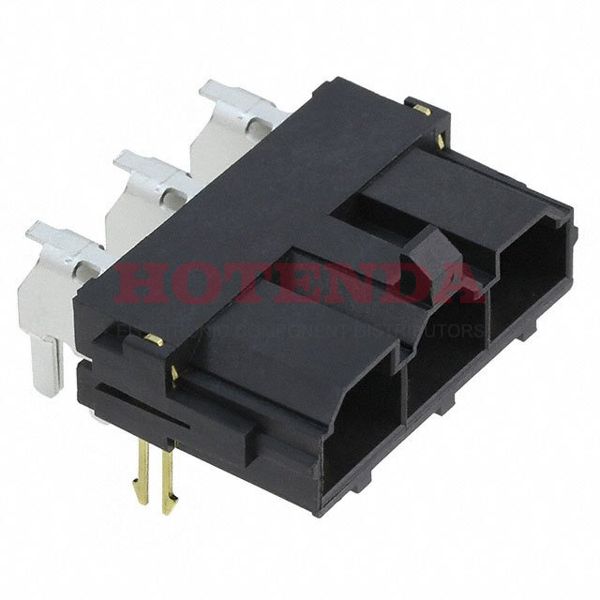

Name: 0428203233
Brand: Molex
SKU: 0428203233
Price: 10.21000 USD
Availability: InStock

new

0428203233

Manufacturer part number:0428203233

Manufacturer:Molex

Description:0428203233 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0428203233 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Zirconium Alloy
Mounting Type	Through Hole, Right Angle
Contact Shape	Rectangular
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Shell Material	POLYETHYLENE
Packaging	Tube
Series	Mini-Fit Sr 42820
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	3
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows	1
Additional Feature	POLARIZED
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Blade
Mixed Contacts	NO
Insulation Height	0.421 10.70mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.394 10.00mm
Insulation Color	Black
Contact Length - Post	0.201 5.11mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Empty Shell	NO
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0428203233 Product Details

0428203233 Overview

You'll get Header packages.Through Hole, Right Angle is the mounting type.This product is packaged in a case marked Tube.This is from the Mini-Fit Sr 42820 Series.Further, there are features such as POLARIZED, to name only a few.There is the possibility of using the device for Automotive, General Purpose, Industrial, Medical, Telecommunications.It is more powerful in many ways due to its Board Lock feature.
