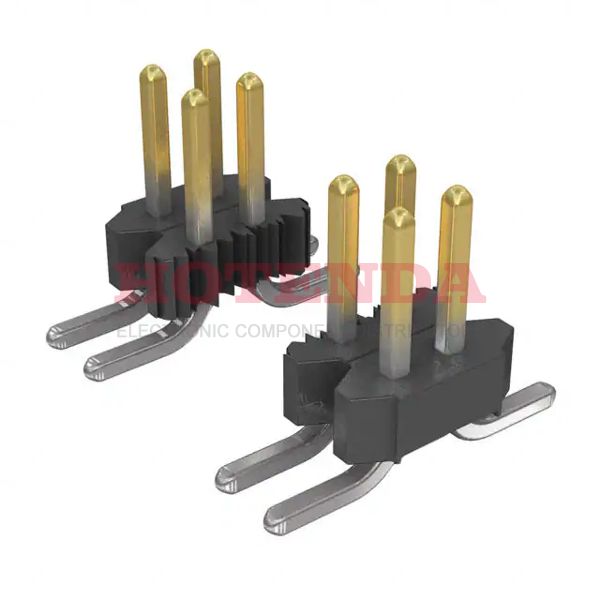

Name: 0015911362
Brand: Molex
SKU: 0015911362
Price: 3.13000 USD
Availability: InStock

new-10%

0015911362

Manufacturer part number:0015911362

Manufacturer:Molex

Description:0015911362 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015911362 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Packaging	Tube
Series	C-Grid 71308
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	36
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Additional Feature	STACKABLE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Total Number of Contacts	36
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015911362 Product Details

0015911362 Overview

The product comes in a package of Header, Breakaway.This device has a mounting type of Surface Mount.Packaged in a Tube case.This product is part of the C-Grid 71308 Series.To name a few, there is also STACKABLE.Automotive, General Purpose, Lighting, Medical, Telecommunications is one possible application.In many ways, Board Guide makes it more powerful.
