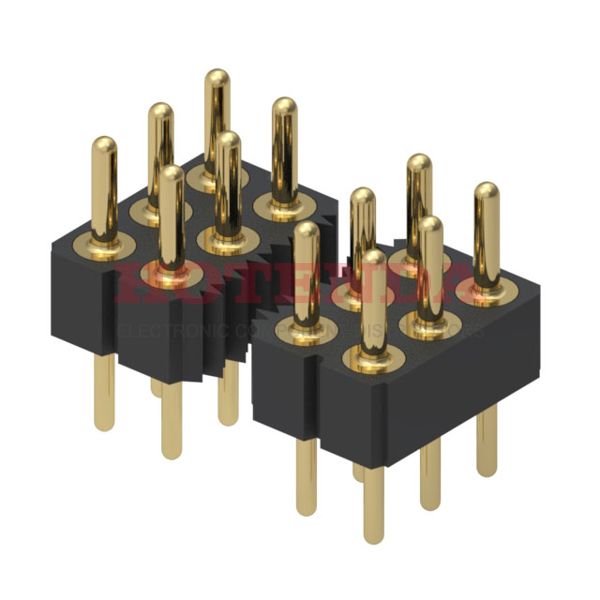

Name: 804-10-063-10-002000
Brand: Mill-Max Manufacturing Corp.
SKU: 804-10-063-10-002000
Price: 13.56000 USD
Availability: InStock

new

804-10-063-10-002000

Manufacturer part number:804-10-063-10-002000

Manufacturer:Mill-Max Manufacturing Corp.

Description:804 Series 3-Row Header Solder Brass Alloy Bulk Through Hole Gold Polycyclohexylenedimethylene Terephthalate (PCT) 63-Position Board to Board 0.110 2.79mm Height

Case Package:SOT-23

Datasheet:804-10-063-10-002000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Brass Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Packaging	Bulk
Series	804
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	63
Number of Rows	3
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Terminal Pitch	2.54mm
Insulation Height	0.110 2.79mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.133 3.38mm
Shrouding	Unshrouded
Contact Length - Mating	0.142 3.61mm
Overall Contact Length	0.400 10.16mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	10.0μin 0.25μm
RoHS Status	ROHS3 Compliant

804-10-063-10-002000 Product Details

804-10-063-10-002000 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 804 Series.There is a mounting hole at Through Hole.

804-10-063-10-002000 Features

804 series

804-10-063-10-002000 Applications

There are a lot of Mill-Max Manufacturing Corp.
804-10-063-10-002000 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology

Quantity	Unit Price	Ext. Price
1	$12.29000	$12.29
10	$11.17000	$111.7
25	$10.89080	$272.27
50	$10.05300	$502.65
100	$9.49440	$949.44
250	$8.65668	$2164.17
500	$8.09818	$4049.09

804-10-063-10-002000

804-10-063-10-002000

Technical Specifications

In-Stock:637 items
