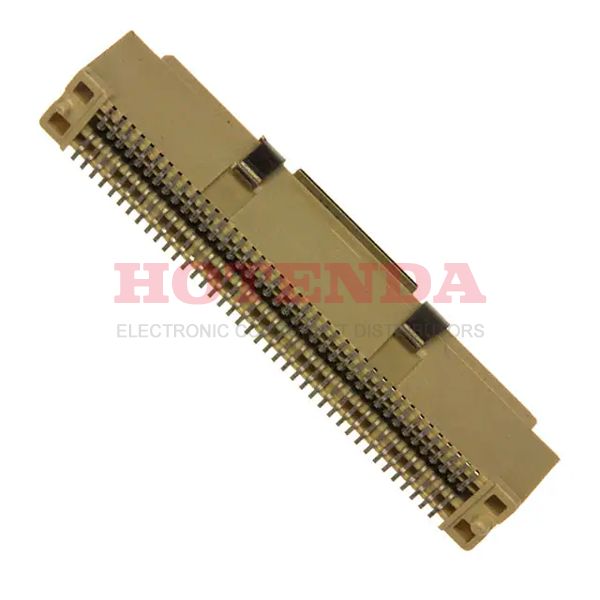

Name: 61083-084402LF
Brand: Amphenol ICC (FCI)
SKU: 61083-084402LF
Price: 7.12000 USD
Availability: InStock

new-10%

61083-084402LF

Manufacturer part number:61083-084402LF

Manufacturer:Amphenol ICC (FCI)

Description:61083-084402LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:61083-084402LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Brass
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	BergStak® 0.80mm
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Plug, Center Strip Contacts
Number of Positions	80
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Rows	2
Gender	Male
Voltage - Rated	100V
Pitch	0.031 0.80mm
Orientation	Straight
Depth	6mm
Current Rating	500mA
Contact Finish	Gold
Number of Contacts	80
Contact Resistance	50mOhm
Row Spacing	2.4 mm
Max Voltage Rating (AC)	100V
Length	37.8mm
Width	6mm
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.303 7.70mm
Stack Height (Mating)	8mm 12mm 16mm
Stack Height	7.7mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

61083-084402LF Product Details

61083-084402LF Overview

Plug, Center Strip Contacts packaging is included.An Tape & Reel (TR) case is utilized for packaging the product.The mounting type of the device is Surface Mount.It's from the BergStak? 0.80mm Series.It is possible to ensure that Board Guide remains constant during operation.In order to mount it, you'll need a Surface Mount socket.It's best to use it when the temperature is below 125°C.Temperatures below -40°C are required for this device.
