Name: AXK580147YG
Brand: Panasonic Electric Works
SKU: AXK580147YG
Price: 3.13000 USD
Availability: InStock

new-10%

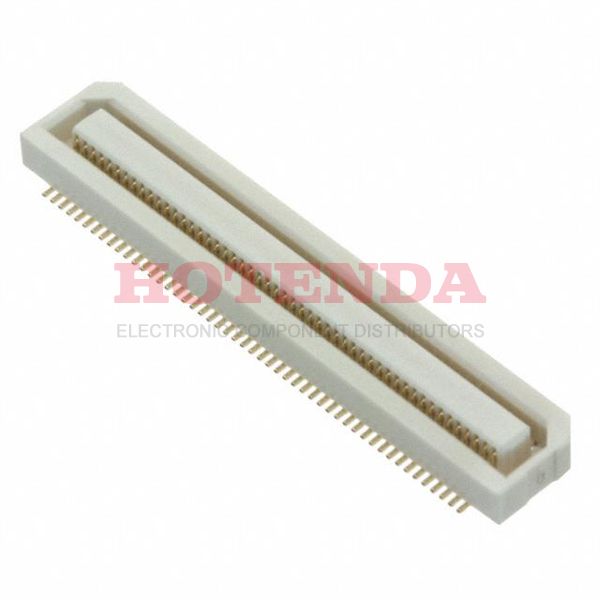

AXK580147YG

Manufacturer part number:AXK580147YG

Manufacturer:Panasonic Electric Works

Description:Socket, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 80 Positions P5K Gold Solder COPPER ALLOY

Case Package:SOT-23

Datasheet:AXK580147YG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	COPPER ALLOY
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Resin
Packaging	Tape & Reel (TR)
Published	2008
Series	P5K
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket, Center Strip Contacts
Number of Positions	80
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	2
Voltage - Rated	60V
Additional Feature	LOW PROFILE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	80
Orientation	Straight
Depth	5mm
Current Rating	500mA
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	FEMALE
UL Flammability Code	94V-0
Contact Resistance	60mOhm
Max Voltage Rating (AC)	60V
Max Current Rating	10A
Max Voltage Rating (DC)	6.06kV
Length	23.2mm
Height Above Board	0.085 2.16mm
Stack Height (Mating)	3mm 3.5mm
RoHS Status	RoHS Compliant

AXK580147YG Product Details

AXK580147YG Overview

This product is packaged in a Socket, Center Strip Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the P5K Series.This part must be mounted with a Surface Mount socket.Use it below 85°C.A minimum temperature of -55°C must be maintained for the operation of this device.Furthermore, there are other features such as LOW PROFILE, to name a few.
