Name: DF30FC-24DP-0.4V(81)
Brand: Hirose Electric Co Ltd
SKU: DF30FC-24DP-0.4V(81)
Price: 1.13000 USD
Availability: InStock

new-10%

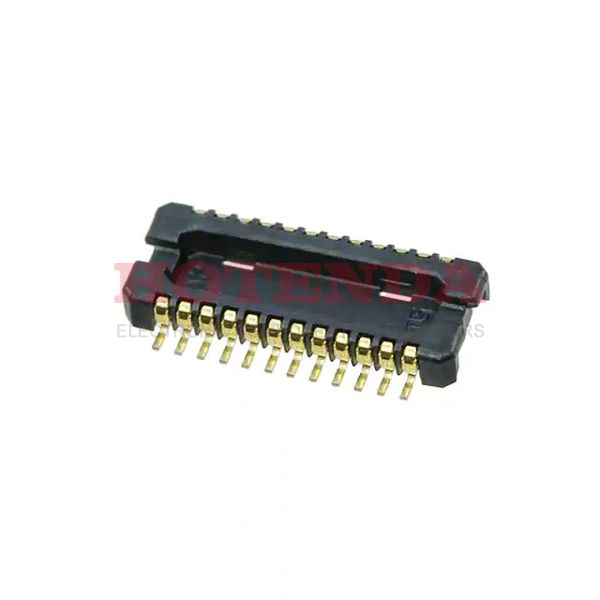

DF30FC-24DP-0.4V(81)

Manufacturer part number:DF30FC-24DP-0.4V(81)

Manufacturer:Hirose Electric Co Ltd

Description:Header, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 24 Positions DF30 Gold SMD/SMT Bronze

Case Package:SOT-23

Datasheet:DF30FC-24DP-0.4V(81) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	DF30
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Header, Center Strip Contacts
Number of Positions	24
Max Operating Temperature	85°C
Min Operating Temperature	-35°C
Number of Rows	2
Voltage - Rated	30V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.016 0.40mm
Total Number of Contacts	24
Current Rating	300mA
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	MALE
UL Flammability Code	94V-0
Insulation Resistance	50MOhm
Contact Finish Thickness	2.00μin 0.051μm
Height Above Board	0.031 0.80mm
Stack Height (Mating)	0.9mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF30FC-24DP-0.4V(81) Product Details

DF30FC-24DP-0.4V(81) Overview

A Header, Center Strip Contacts package is included with it.Packaging is performed using a Tape & Reel (TR) case.Its mounting type is Surface Mount.It is part of the DF30 Series of products.If you wish to mount this part, you will need to use a Surface Mount socket.Whenever it's below 85°C, it's best to use it.The device must operate at a temperature of -35°C at all times.Additionally, there are other features, such as LOW PROFILE.
