Name: 61083-122400LF
Brand: Amphenol ICC (FCI)
SKU: 61083-122400LF
Price: 6.31000 USD
Availability: InStock

new-10%

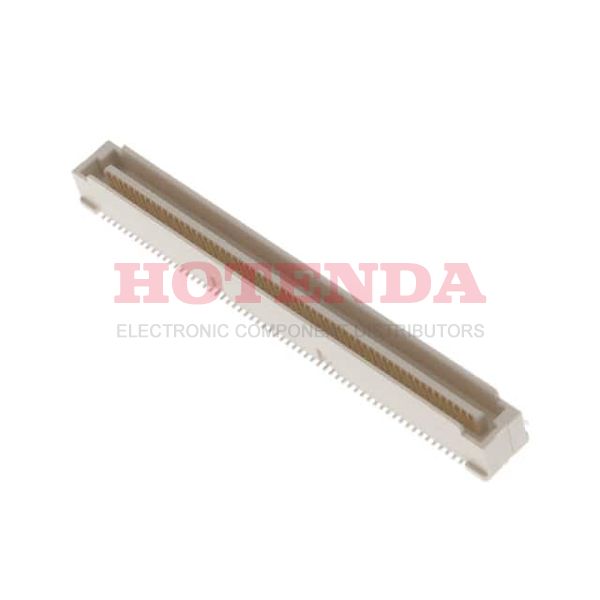

61083-122400LF

Manufacturer part number:61083-122400LF

Manufacturer:Amphenol ICC (FCI)

Description:61083-122400LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:61083-122400LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tube
Series	BergStak® 0.80mm
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Center Strip Contacts
Number of Positions	120
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Rows	2
Voltage - Rated	100V
Additional Feature	POLARIZED
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	120
Orientation	Straight
Depth	6mm
Current Rating	800mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Contact Gender	MALE
UL Flammability Code	94V-0
Rated Current (Signal)	0.8A
Contact Style	CENTRONIC
Contact Resistance	50mOhm
Insulation Resistance	1000000000Ohm
Max Voltage Rating (AC)	100V
Polarization Key	POLARIZED HOUSING
Contact Pattern	RECTANGULAR
Insertion Force-Max	.8896 N
Length	53.8mm
Width	6mm
Contact Finish Thickness	8.00μin 0.203μm
Plating Thickness	8μin
Height Above Board	0.224 5.70mm
Stack Height (Mating)	6mm 10mm 14mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

61083-122400LF Product Details

61083-122400LF Overview

Packaging is Plug, Center Strip Contacts.It has been determined that a Tube case is necessary to package the product.Its mounting type is Surface Mount.It's from the BergStak? 0.80mm Series.Maintaining Board Guide is possible when operating.Using a Surface Mount socket is required in order to mount the item.It works best at below 125°C.-40°C is the minimum temperature for this device.Moreover, there are a number of other features, including POLARIZED, to name just a few.
