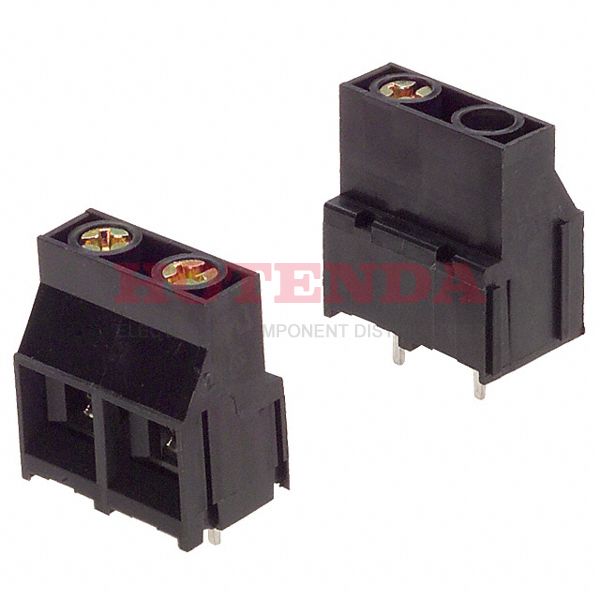

Name: 1724700000
Brand: Weidmüller
SKU: 1724700000
Price: 2.60000 USD
Availability: InStock

new-10%

1724700000

Manufacturer part number:1724700000

Manufacturer:Weidmüller

Description:0.375 9.53mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 10-26 AWG LL

Case Package:SOT-23

Datasheet:1724700000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	LL
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Connector Type	PCB, Terminal Block
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	POLYAMIDE, 94V-0
HTS Code	8536.69.40.40
Pitch	0.375 9.53mm
Orientation	Right Angle
Current Rating	30A
Wire Gauge	10-26 AWG
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	10 AWG
Wire/Cable Gauge	10 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Number of Positions Per Level	2
Height	21.5mm
Length	19mm
Width	12.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1724700000 Product Details

1724700000 Overview

Packaging is in the form of PCB, Terminal Block.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the LL Series.Other features include POLYAMIDE, 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -50°C~120°C operating temperatures.
