Name: 1713024
Brand: Phoenix Contact
SKU: 1713024
Price: 2.55000 USD
Availability: InStock

new-10%

1713024

Manufacturer part number:1713024

Manufacturer:Phoenix Contact

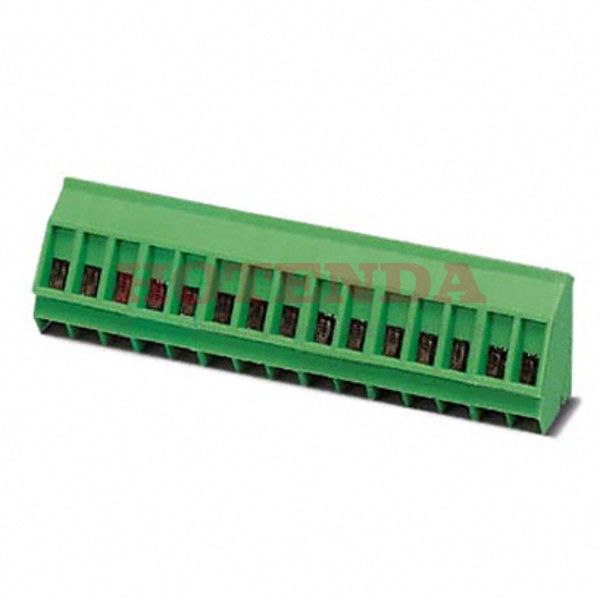

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON SMKDS

Case Package:SOT-23

Datasheet:1713024 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	4.099993g
Packaging	Bulk
Series	COMBICON SMKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Depth	16mm
Current Rating	24A
Number of Contacts	2
Wire Gauge	12-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	28A
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Height	18mm
Length	16mm
Width	5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1713024 Product Details

1713024 Overview

The product comes in a package of Screw.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON SMKDS Series.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.This chip should not be operated above 250V volts.
