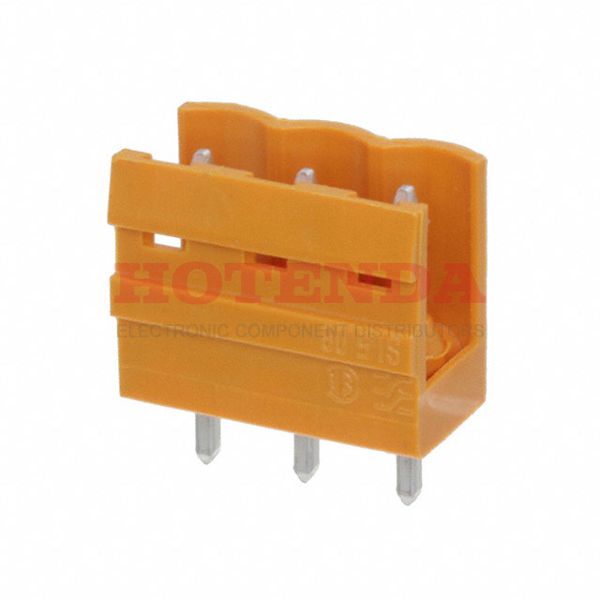

Name: 1521960000
Brand: Weidmüller
SKU: 1521960000
Price: 1.41000 USD
Availability: InStock

new-10%

1521960000

Manufacturer part number:1521960000

Manufacturer:Weidmüller

Description:1521960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1521960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (2 Side)
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	3
Orientation	Straight
Depth	8.5mm
Insulation Height	0.472 12.00mm
Current Rating	10A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	3
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1521960000 Product Details

1521960000 Overview

A Through Hole mounting type is specified for the device.Packaging for the product is carried out via a Bulk case.The product is a part of the Omnimate SL Series.Mounting of the part is based on Through Hole.This device runs at -20°C~100°C operating temperature.There are many benefits shared between this part and other Header, Male Pins, Shrouded (2 Side) products.
