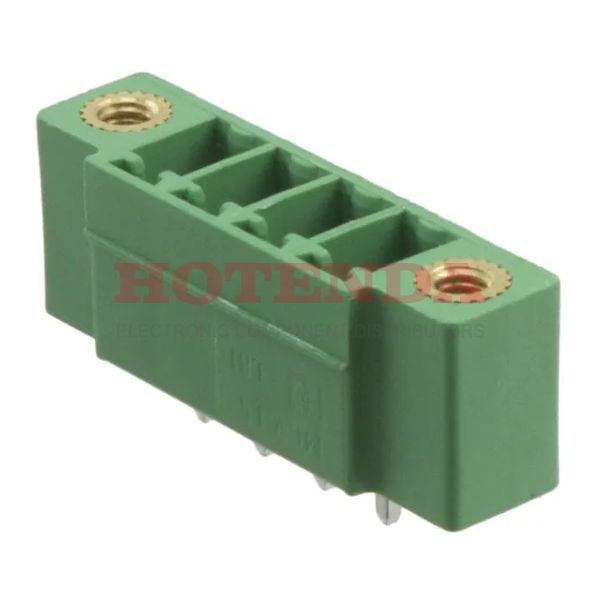

Name: 1830619
Brand: Phoenix Contact
SKU: 1830619
Price: 4.02000 USD
Availability: InStock

new-10%

1830619

Manufacturer part number:1830619

Manufacturer:Phoenix Contact

Description:1830619 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830619 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2007
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	4
Number of Decks	1
Voltage - IEC	250V
Number of Ways	4
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.7mm
Length	25.63mm
Width	25.63mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830619 Product Details

1830619 Overview

This product is packaged in a Plug box.This device's mounting type is Through Hole.We use a Bulk case to package the product.It is part of the COMBICON MCV Series of products.Its Mating and Mounting Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
