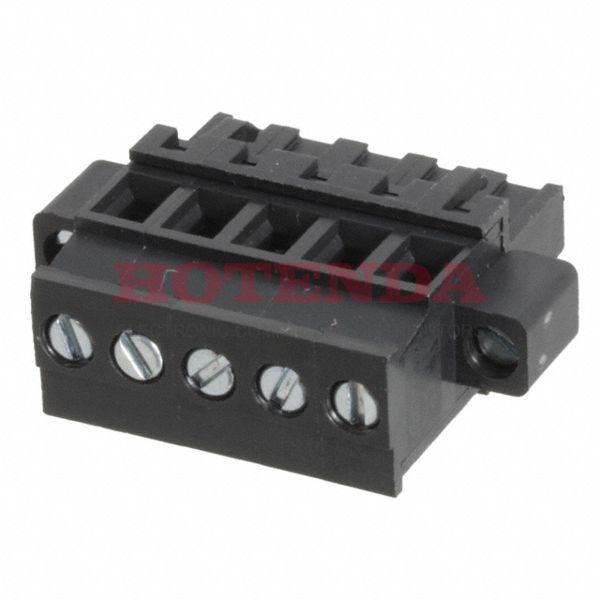

Name: 0395373005
Brand: Molex
SKU: 0395373005
Price: 1.87000 USD
Availability: InStock

new-10%

0395373005

Manufacturer part number:0395373005

Manufacturer:Molex

Description:0395373005 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395373005 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39537
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Pitch	0.200 5.08mm
Orientation	Vertical
Depth	25.9mm
Insulation Height	1.020 25.91mm
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Circuits	4
Max Supply Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.34 Nm (3.0 Lb-In)
Plug Wire Entry	90°
Wire Strip Length	5mm
Number of Positions Per Level	5
Length	35.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

0395373005 Product Details

0395373005 Overview

There is a Free Hanging (In-Line) mounting type for the device.Packaging is performed using a Bulk case.It is part of the Eurostyle ESE 39537 Series of products.Its Mating Flange, Retention Latches (Wire Side) feature makes it more powerful in a number of ways.In this case, Cable, Free Hanging mounts the part.A circuit of 4 makes up this part.The device runs in -40°C~105°C Operating Temperature.There should be no voltage above 0 on the supply line for this chip.Other Plug, Female Sockets products share lots of benefits with this part.
