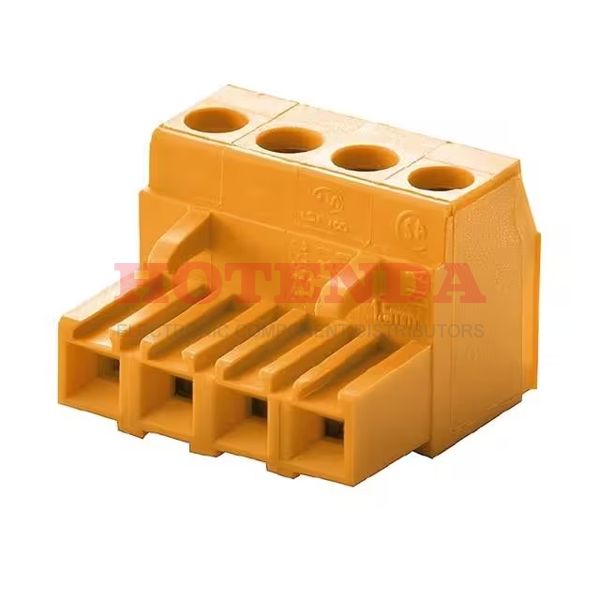

Name: 1281960000
Brand: Weidmüller
SKU: 1281960000
Price: 3.86000 USD
Availability: InStock

new-10%

1281960000

Manufacturer part number:1281960000

Manufacturer:Weidmüller

Description:1281960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1281960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Unimate BLA
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	4
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Depth	20mm
Insulation Height	0.598 15.19mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	4
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2.5
Length	20.32mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1281960000 Product Details

1281960000 Overview

Mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.There is a product in the Unimate BLA Series.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.By Cable, Free Hanging, the part is mounted.It runs at -50°C~120°C Operating Temperature.You should not supply this chip with more voltage than 300V.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
