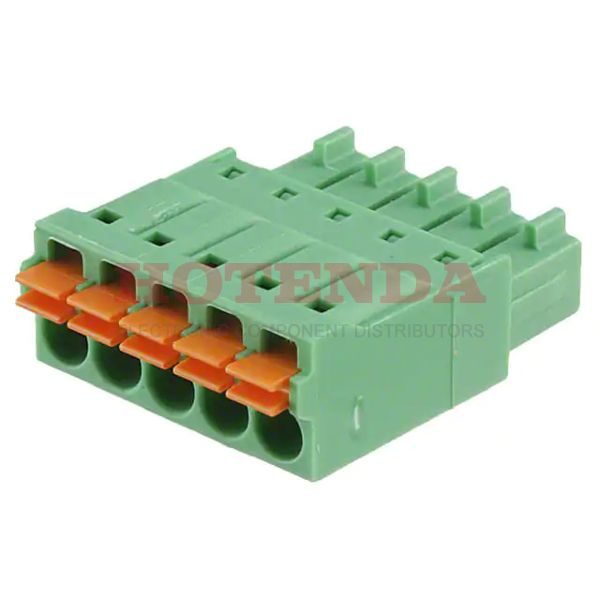

Name: 1952296
Brand: Phoenix Contact
SKU: 1952296
Price: 6.41000 USD
Availability: InStock

new-10%

1952296

Manufacturer part number:1952296

Manufacturer:Phoenix Contact

Description:1952296 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1952296 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	3.040004g
Packaging	Bulk
Published	2003
Series	COMBICON FMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.138 3.50mm
Insulation Height	0.307 7.80mm
Current Rating	8A
Termination Style	Screwless - Push-In Spring
Approval Agency	CB, VDE, cULus
Voltage	150V
Number of Levels	1
Current	8A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	5
Fastening Method	SPRING LOADED
Height	18.2mm
Length	7.8mm
Width	22.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1952296 Product Details

1952296 Overview

This product is packaged in a Socket box.Free Hanging (In-Line) is the mounting type.The product is packaged in a Bulk case.A product of the COMBICON FMC Series, it belongs to the range of products of that series.There are also other features like PA, 94V-0, to name a few.It's mounted by Free Hanging.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
