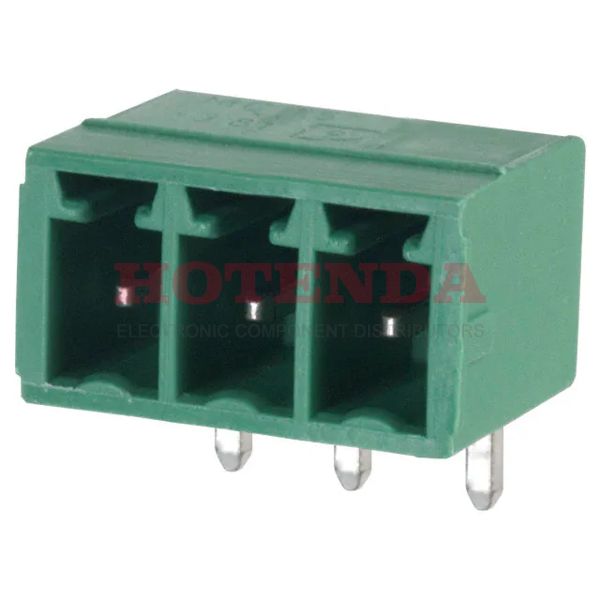

Name: 1803280
Brand: Phoenix Contact
SKU: 1803280
Price: 1.40000 USD
Availability: InStock

new-10%

1803280

Manufacturer part number:1803280

Manufacturer:Phoenix Contact

Description:1803280 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803280 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2003
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Additional Feature	PBT, UL 94V-0, SAFETY APPROVAL VDE
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.81mm
Contact Gender	Male
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	3
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	250V
Number of Ways	3
Safety Approval	CCA; CB; CSA; CUL; GOST; UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Test Voltage	2.5kV
Length	12.82mm
Width	18.7mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803280 Product Details

1803280 Overview

Through Hole is the mounting type for the device.An orange Bulk case is used to package the product.As a product of the COMBICON MC Series, it can be found in this category.Then there's PBT, UL 94V-0, SAFETY APPROVAL VDE, for example.The part is mounted by Through Hole.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
