Name: 1226580000
Brand: Weidmüller
SKU: 1226580000
Price: 29.29000 USD
Availability: InStock

new

1226580000

Manufacturer part number:1226580000

Manufacturer:Weidmüller

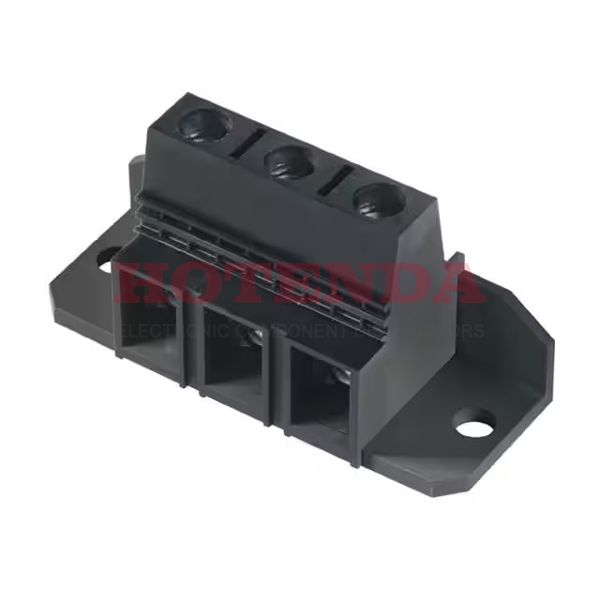

Description:0.591 15.00mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 4-16 AWG Omnimate LX

Case Package:SOT-23

Datasheet:1226580000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LX
Feature	Flange (Mounting)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Voltage - Rated	600V
Pitch	0.591 15.00mm
Current Rating	85A
Wire Gauge	4-16 AWG
Number of Levels	1
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	4 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	2.4-4 Nm (21.2-35.4 Lb-In)
Positions Per Level	8
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M5
Hole Diameter	1.6 mm
Number of Positions Per Level	8
Stripping Length	16mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1226580000 Product Details

1226580000 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate LX Series.It is more powerful in many ways due to its Flange (Mounting) feature.It is mounted by Through Hole.It operates at an operating temperature of -50°C~120°C.
