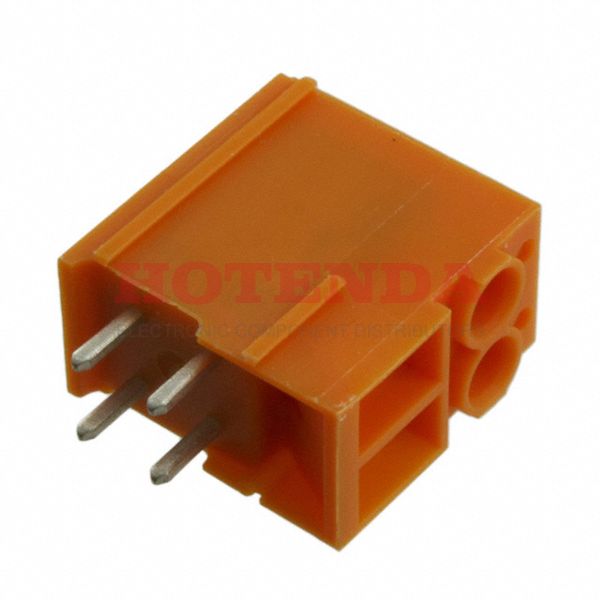

Name: 1785590000
Brand: Weidmüller
SKU: 1785590000
Price: 2.69000 USD
Availability: InStock

new-10%

1785590000

Manufacturer part number:1785590000

Manufacturer:Weidmüller

Description:0.200 5.08mm Orange Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - TOP Clamp 1 Levels 14-22 AWG Omnimate TOP1.5GS

Case Package:SOT-23

Datasheet:1785590000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate TOP1.5GS
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Number of Contacts	2
Wire Gauge	14-22 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	2
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - TOP Clamp
Screw Thread	M2.5
Height	18.6mm
Width	18.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1785590000 Product Details

1785590000 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate TOP1.5GS Series.There is a mounting hole at Through Hole.Devices operate at -20°C~100°C operating temperatures.
