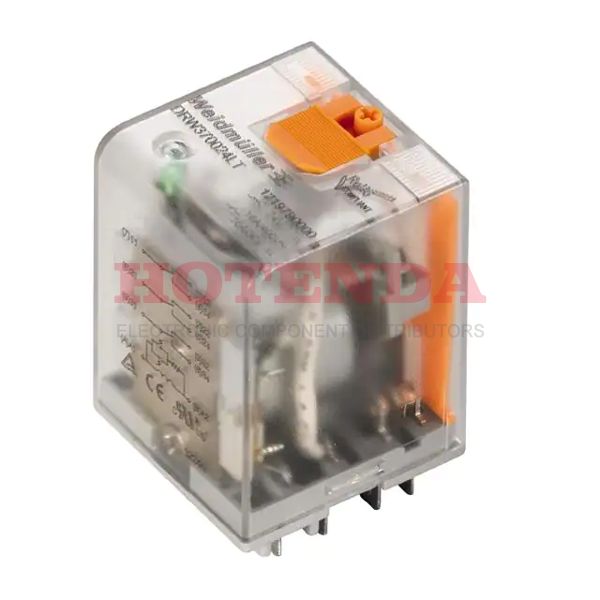

1219850000

Name: 1219850000
Brand: Weidmüller
SKU: 1219850000
Price: 19.53000 USD
Availability: InStock

new

Manufacturer part number:1219850000

Manufacturer:Weidmüller

Description:

Case Package:SOT-23

Datasheet:1219850000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Surface Mount	NO
Mounting Feature	PANEL MOUNT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Packing Method	BULK
Reference Standard	CE; CUL; EAC; EN; IEC; UL
Body Length or Diameter	36mm
Operating Temperature (Max)	60°C
Body Breadth	36 mm
Physical Dimension	36mm x 36mm x 48mm
Operating Temperature (Min)	-40°C
Contact Current(DC)-Max	16A
Sealing	IP20
Contact Voltage(DC)-Max	300V
Termination Type	QUICK CONNECT
Relay Type	POWER/SIGNAL RELAY
Contact Current(AC)-Max	16A
Coil Resistance	400Ohm
Contact (AC) Max Rating R Load	16A@500VAC
Operate Time	20 ms
Release Time	20 ms
Contact (DC) Max Rating R Load	16A@300VDC
Coil Power	1500mW
Contact Voltage(AC)-Max	500V
Contact/Output Supply Type	AC/DC
Relay Action	MOMENTARY
Coil/Input Supply Type	DC
Relay Function	SPST
Coil Voltage(DC)-Max	24V
Coil Current(DC)-Max	0.06A
Coil Operate Voltage(DC)	18V
Coil Release Voltage(DC)	2.4V
Body Height	48mm
RoHS Status	RoHS Compliant
