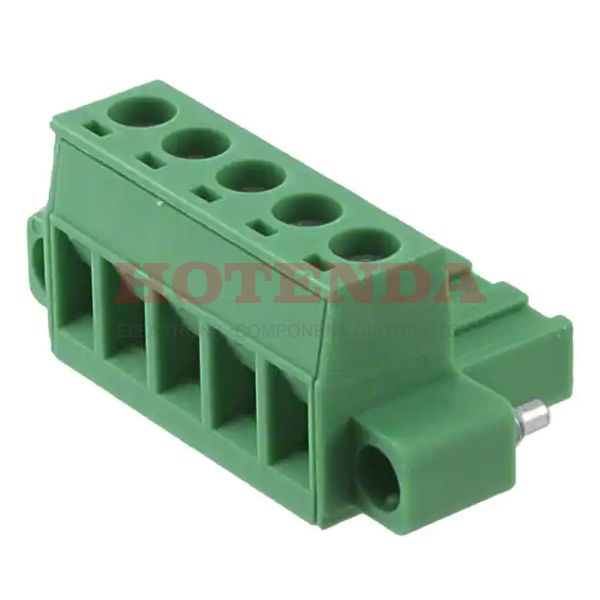

Name: 1912100
Brand: Phoenix Contact
SKU: 1912100
Price: 6.84000 USD
Availability: InStock

new-10%

1912100

Manufacturer part number:1912100

Manufacturer:Phoenix Contact

Description:1912100 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912100 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	9.289997g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	5
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912100 Product Details

1912100 Overview

The product is packaged in Screw.This device's mounting type is Free Hanging (In-Line).Packaged in a Bulk case.A member of the COMBICON MSTB Series.There are also other features, like PA, UL 94V0, to name a few.As a result of its Mating Flange feature, it possesses a great deal of power.Mounted by Free Hanging.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
