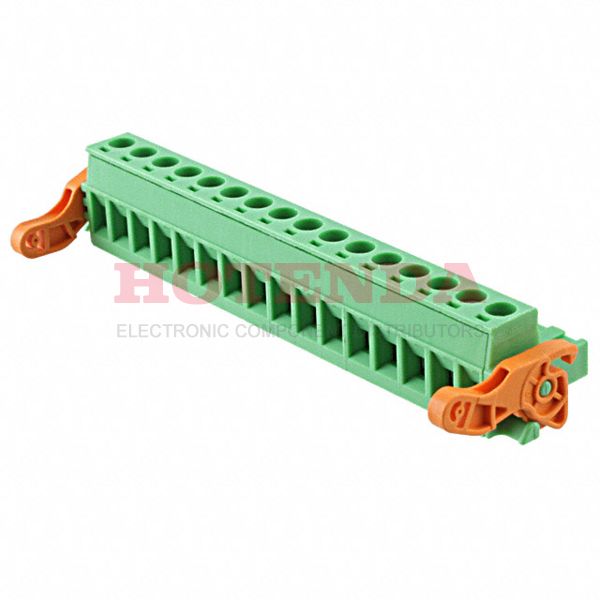

Name: 1809021
Brand: Phoenix Contact
SKU: 1809021
Price: 18.18000 USD
Availability: InStock

new

1809021

Manufacturer part number:1809021

Manufacturer:Phoenix Contact

Description:1809021 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1809021 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON MSTB
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	cULus
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	16
Screw Size	M3
Length	81.9mm
Width	29.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1809021 Product Details

1809021 Overview

The product comes in a package of Screw.Free Hanging (In-Line) is the mounting type of the device.In order to package the product, a Bulk case is used.COMBICON MSTB Series product.As a result of its Ejector Latches feature, it possesses a great deal of power.It is mounted by Free Hanging, Plug-In.Other Plug, Female Sockets products share lots of benefits with this part.
