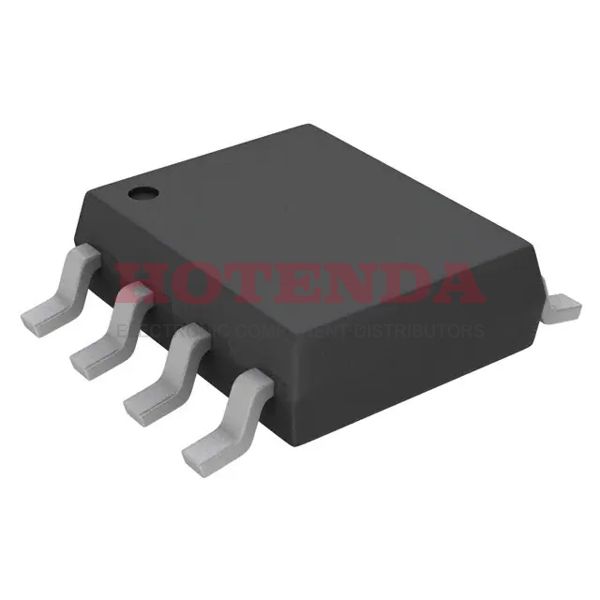

TC7WZ04FU,LJ(CT Overview
The part comes in 8-TSSOP, 8-MSOP (0.110, 2.80mm Width) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A Inverter logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.65V~5.5V. Around -40°C~85°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 32mA 32mA. This item is from the TC7WZ series. Inputs for this part are 3. Circuits number 3 make up this device. Standing by mode draws 10μA watts of current. A supplier offers a package with a value of US8.
TC7WZ04FU,LJ(CT Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
TC7WZ04FU,LJ(CT Applications
There are a lot of Toshiba Semiconductor and Storage
TC7WZ04FU,LJ(CT Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
