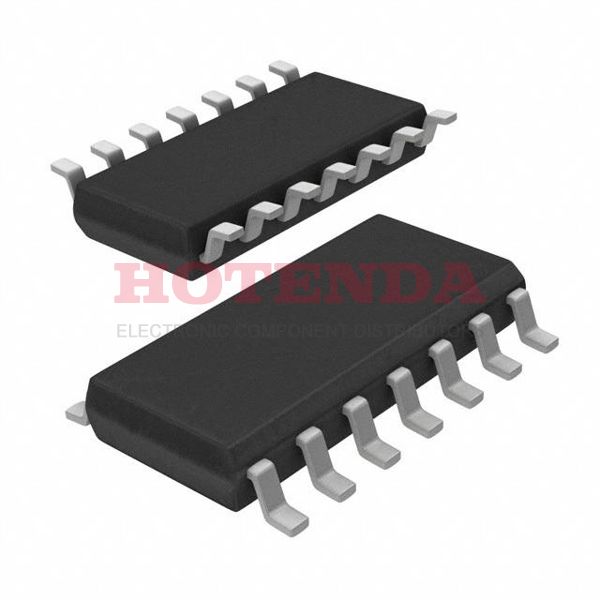

74LV00D,118 Overview
The part can be shipped overseas conveniently because it is packaged in 14-SOIC (0.154, 3.90mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NAND Gate. The part must have a voltage of 1V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 12mA 12mA. This is part of the 74LV series. In total, there are 14 terminations. 4 functions in the part enhance the user experience significantly. The chip is part of the LV/LV-A/LVX/H family. Use 74LV00 to search for device variants. There are 14 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 14 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 40μA current flows through it. Devices require a minimum voltage of 1V. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached. The device has 1 outputs. It is specified that the operating supply voltage for the chip will be 3.3V volts. A logical operation through a gate of 4.
74LV00D,118 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
LV/LV-A/LVX/H Family
Quiescent Current: 40μA
4 Gates
