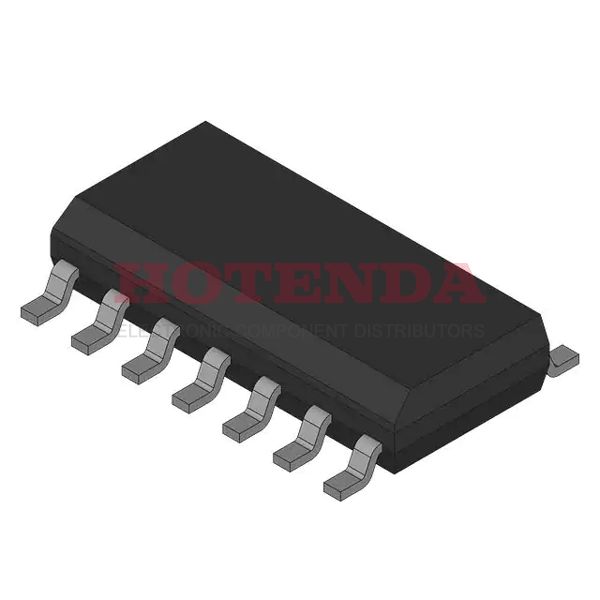

74HCT03D,652 Overview
As the part is packed in 14-SOIC (0.154, 3.90mm Width), international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tube. This logic works according to the NAND Gate principle. Ensure the part's full functionality by setting the voltage to 4.5V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. - 4mA is the output current's high and low states. 74HCT is its series number. Total terminations are 14. Users will benefit significantly from 4 functions in this part. There is a chip like this in HCT. Trying searching with 74HCT03 will yield device variants. The part body receives 14 pins. Inputs for the part are set to 2. There are 4 circuits in this device. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. Standby current is 2μA. A feature of it is Open Drain.
74HCT03D,652 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
HCT Family
74HCT03D,652 Applications
There are a lot of Nexperia USA Inc.
74HCT03D,652 Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
