Name: UA78L10CD
Brand: Texas Instruments
SKU: UA78L10CD
Price: 0.14000 USD
Availability: InStock

new-10%

UA78L10CD

Manufacturer part number:UA78L10CD

Manufacturer:Texas Instruments

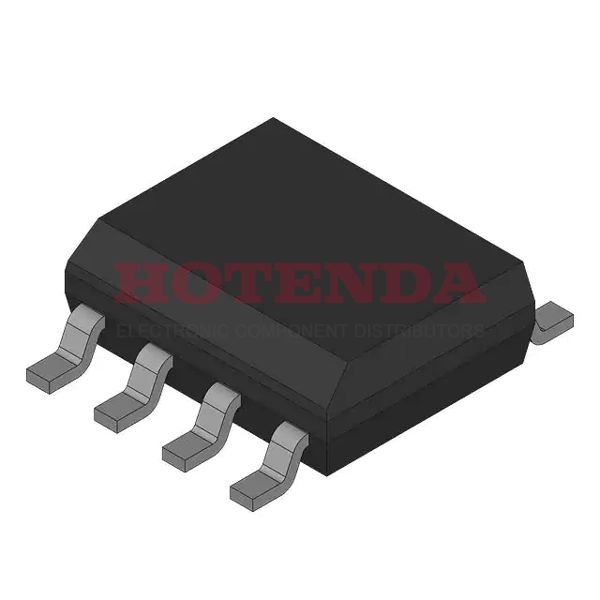

Description:1.27mm PMIC 8 SOIC

Case Package:SOT-23

Datasheet:UA78L10CD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	SOIC
Surface Mount	YES
Number of Terminations	8
ECCN Code	EAR99
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	R-PDSO-G8
Number of Outputs	1
Qualification Status	Not Qualified
Output Voltage 1	10V
Input Voltage (Min)	12.5V
Input Voltage (Max)	25V
Dropout Voltage1-Nom	4V
Output Voltage1-Max	11V
Output Voltage1-Min	9V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Voltage Tolerance-Max	10%
Output Current1-Max	0.1A
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	35V
Adjustability	FIXED
Load Regulation-Max(%)	0.09%
Line Regulation-Max (%/V)	0.225%
Length	4.9mm
Height Seated (Max)	1.75mm
Width	3.9mm
RoHS Status	RoHS Compliant

UA78L10CD Product Details

UA78L10CD Overview

Packaging of the Liner regulator IC takes the form of a SOIC case. The PMIC chip has 8 terminations. The chip has a total of 8 pins on it, each with its own function. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC is what is known as a standard Other Regulators component. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR, which means it operates on a DC voltage.
