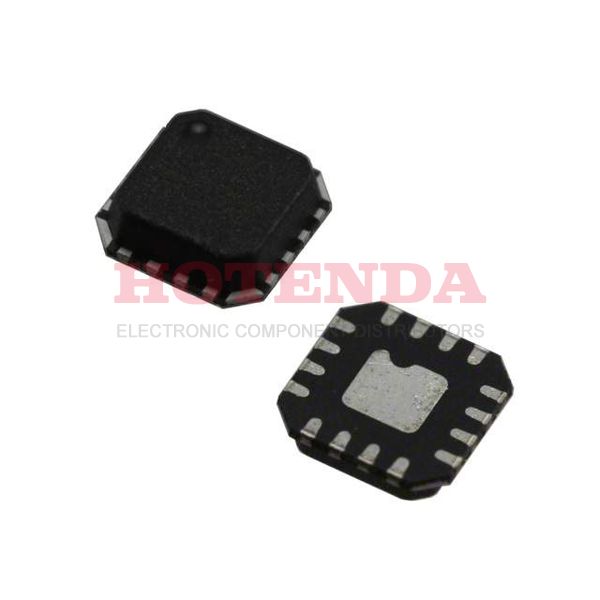

ADP1764ACPZ1.25-R7 Overview
The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a 16-WFQFN Exposed Pad, CSP case is used. On the Voltage regulator IC, there are 16 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C TJ degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 4A. As you can see, the regulator IC has a total of 16 pins. For your information, part number ADP1764 is the basic part number for this voltage regulator IC.
ADP1764ACPZ1.25-R7 Features
ADP1764ACPZ1.25-R7 Applications
There are a lot of Analog Devices Inc.
ADP1764ACPZ1.25-R7 Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
