NCP161BMX330TBG Overview

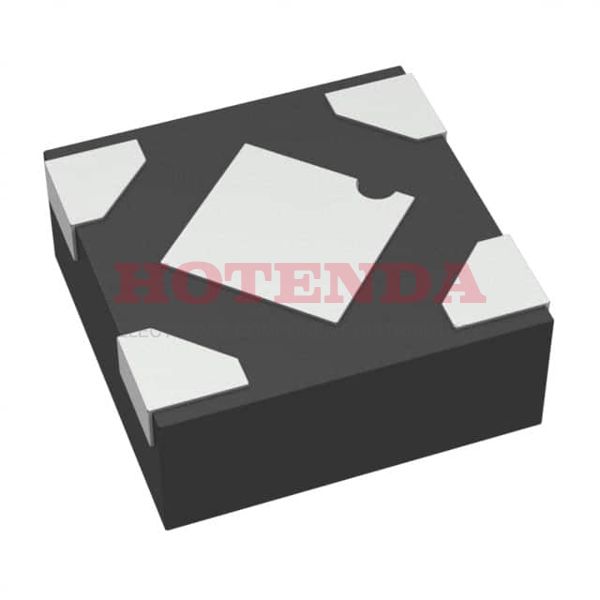

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 4-XDFN Exposed Pad case. On the regulater IC chip, there are a total of 4 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C TA degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 450mA. It operates in the 18μA Quiescent Current state. The top supply voltage can be set to 5.5V volts.
NCP161BMX330TBG Features
160mV dropout voltage
TR method of packing
NCP161BMX330TBG Applications
There are a lot of ON Semiconductor
NCP161BMX330TBG Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
