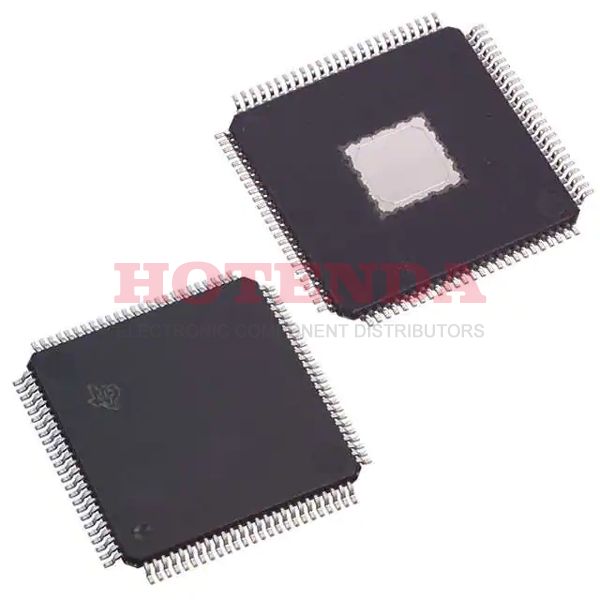

Name: TMS320F28075PZPT
Brand: Texas Instruments
SKU: TMS320F28075PZPT
Price: 16.98000 USD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	100-TQFP Exposed Pad
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	C2000™ C28x Piccolo™
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A991A2
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Frequency	120MHz
Base Part Number	320F28075
Supply Voltage-Max (Vsup)	1.26V
Interface	CAN, EBI/EMI, I2C, SCI, SPI, UART, USART, USB
Memory Size	512kB
Oscillator Type	External
Number of I/O	41
RAM Size	50K x 16
Voltage - Supply (Vcc/Vdd)	1.14V~3.47V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	C28x
Peripherals	DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	512KB 256K x 16
Connectivity	CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART, USB
Supply Current-Max	295mA
Bit Size	32
Data Converter	A/D 14x12b; D/A 3x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Density	4 Mb
CPU Family	TMS320
Boundary Scan	YES
Low Power Mode	YES
Format	FLOATING-POINT
Integrated Cache	NO
RAM (words)	100
Number of UART Channels	4
Number of Serial I/Os	4
Number of Timers	3
Number of External Interrupts	5
Height	1.2mm
Length	14mm
Width	14mm
Thickness	1mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TMS320F28075PZPT Product Details

TMS320F28075PZPT Overview

The package is 100-TQFP Exposed Pad-shaped. There are 41 I/Os. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. The 32-Bit core is the core of the MCU. There is a type of program memory called FLASH in the Microcontroller. Temperatures within -40°C~105°C TA range are measured by this Microcontroller. C2000? C28x Piccolo? series components belong to this electrical component. Its program memory size is 512KB 256K x 16. Powered by a C28x Core processor. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. IC Chip terminations are 100. 32-bits are used for its size. An output voltage of 1.2V volts is available for this Microcontroller chip. In addition to that, MCU chip has YES DMA channels. 512kB is the size of the memory in the IC part. You can find alternatives through the base part number 320F28075 Microcontroller. Using a 120MHz frequency, this electronic part can perform efficiently. It is possible for the device to work with the motor using the PWM channel YES. The chip has 100 pins. The TMS320 CPU family is embedded in the device, so it can handle a wide range of operations. The device has 4 UART channels. The part has 4 serial I/Os incorporated. An external interrupt is included with the chip part, which consists of 5 interrupts. It is possible to have 3 bits in a IC chip.

TMS320F28075PZPT Features

C2000? C28x Piccolo? series
Base part number of 320F28075
100 Terminals
Based on the 32-Bit
Comes with 100 Pins

TMS320F28075PZPT Applications

There are a lot of Texas Instruments TMS320F28075PZPT Microcontroller applications. TMS320F28075PZPT MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
