Name: ATTINY261-15MZ
Brand: Microchip Technology
SKU: ATTINY261-15MZ
Price: 1.94000 USD
Availability: InStock

new-10%

ATTINY261-15MZ

Manufacturer part number:ATTINY261-15MZ

Manufacturer:Microchip Technology

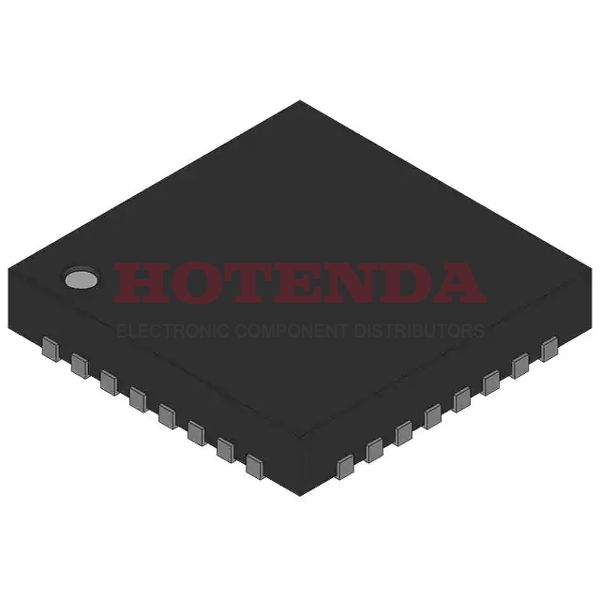

Description:2KB 1K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATtiny Series ATTINY261 32 Pin 16MHz 5V 32-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATTINY261-15MZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-QFN (5x5)
Number of Terminals	32
Interfaces	SPI
Data Converters	A/D 11x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY261
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	16
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATtiny
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Additional Feature	OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATTINY261
JESD-30 Code	S-XQCC-N32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Interface	SPI
Memory Size	2kB
Oscillator Type	Internal
Number of I/O	16
Speed	16MHz
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	2KB 1K x 16
Connectivity	USI
Supply Current-Max	10 mA
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.9 mm
Number of Timers/Counters	2
ROM (words)	2048
EEPROM Size	128 x 8
CPU Family	AVR RISC
RAM (bytes)	128
ROM Programmability	FLASH
Device Core	AVR
Length	5mm
Height Seated (Max)	0.9mm
Width	5 mm
RoHS Status	ROHS3 Compliant

ATTINY261-15MZ Product Details

ATTINY261-15MZ Overview

This Microcontroller comes in a 32-VFQFN Exposed Pad package. This Microcontroller has 16 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, AVR® ATtiny Series. The size of the program memory of Microcontroller is 2KB 1K x 16. MCU is powered by AVR Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 32 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 2kB memory size. You can find alternatives through the base part number ATTINY261. MCU's frequency is 16MHz. The device works in YES PWM channels. The pin number of the component remains 32. It has 2 timers/counters. The device is embedded with AVR RISC CPU family. To name a few, there are additional features like OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ.
