Name: TLV70030DDCT
Brand: Texas Instruments
SKU: TLV70030DDCT
Price: 0.98000 USD
Availability: InStock

new-10%

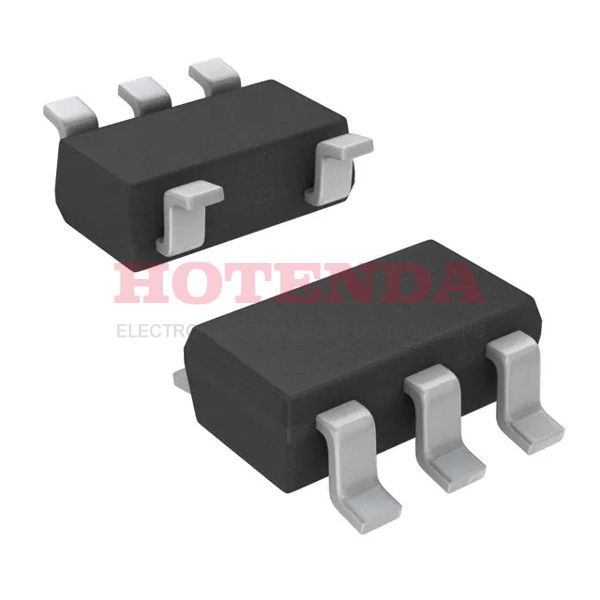

TLV70030DDCT

Manufacturer part number:TLV70030DDCT

Manufacturer:Texas Instruments

Description:Enable Fixed Gold TLV70030 PMIC 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:TLV70030DDCT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Surface Mount	YES
Number of Pins	5
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	5
Termination	SMD/SMT
ECCN Code	EAR99
Power Rating	500mW
Packing Method	TR
Max Power Dissipation	500mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Base Part Number	TLV70030
Pin Count	5
Current - Supply (Max)	270μA
Number of Outputs	1
Output Voltage	3V
Output Type	Fixed
Max Output Current	200mA
Max Supply Voltage	5.5V
Min Supply Voltage	2V
Nominal Supply Current	31μA
Output Configuration	Positive
Power Dissipation	500mW
Quiescent Current	30μA
Control Features	Enable
Accuracy	2 %
Max Output Voltage	3V
Output Voltage 1	3V
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	55μA
Voltage Dropout (Max)	0.25V @ 200mA
PSRR	68dB (1kHz)
Dropout Voltage	175mV
Dropout Voltage1-Nom	0.175V
Min Output Voltage	3V
Voltage Tolerance-Max	2%
Min Current Limit	220mA
Nominal Output Voltage	3V
Output Voltage Accuracy	2 %
Height	1.1mm
Length	2.9mm
Width	1.6mm
Thickness	870μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TLV70030DDCT Product Details

TLV70030DDCT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SOT-23-5 Thin, TSOT-23-5 package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C TJ degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 5. FYI, the basic part number for this IC regulator is TLV70030. The way of packing the voltage regulator IC is TR. It works in 200mA output current at mostIt operates in the 30μA Quiescent Current state. The IC voltage regulator can work with a supply voltage of 5.5V volts at top.
