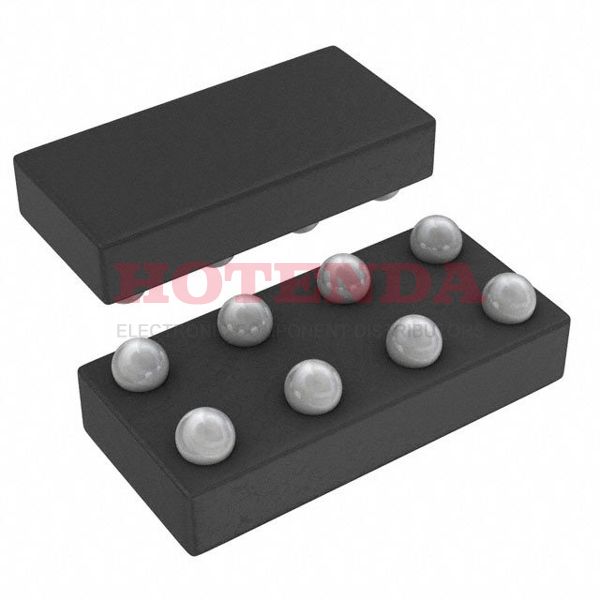

SN74LVC3G04YEAR Overview
As the part is packed in 8-XFBGA, DSBGA, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Cut Tape (CT). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 74LVC is its series number. Total terminations are 8. Users will benefit significantly from 3 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LVC3G04 will yield device variants. The part body receives 8 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 8 pin functions are available upon request. Quiescent parts carry 10μA current. There are 3 circuits in this device. Part now bears a 50pF load capacitance. The device must be supplied with a minimum voltage of 1.65V. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. In addition to this, it is packed with the industry TAPE AND REEL method.
SN74LVC3G04YEAR Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 10μA
SN74LVC3G04YEAR Applications
There are a lot of Texas Instruments
SN74LVC3G04YEAR Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
